Samebike VOYAGER Fat Tire City Electric Bike
Every Redtail e-bike includes a free 1-month warranty plus manufacturer coverage. Add the Redtail Care Package for dedicated support from our US-based team — remote diagnostics, manufacturer claim handling & return-shipping coordination — for up to 5 years.
Your selected plan is added automatically when you tap Add to Cart. No Care Package is added by default.
A support & service plan — it does not cover physical repairs or replacement parts. See full Care Package details →
Samebike VOYAGER Fat Tire City Electric Bike

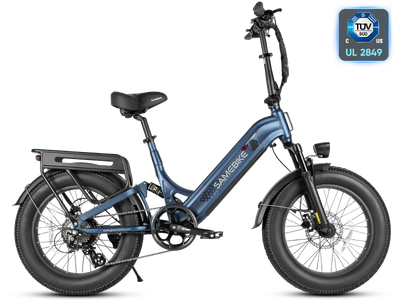

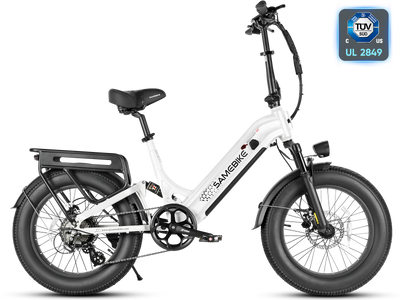

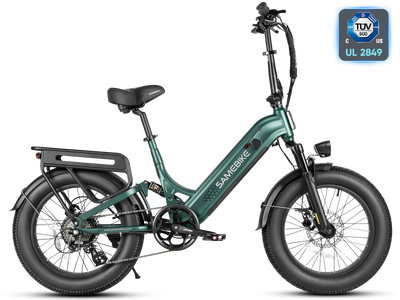

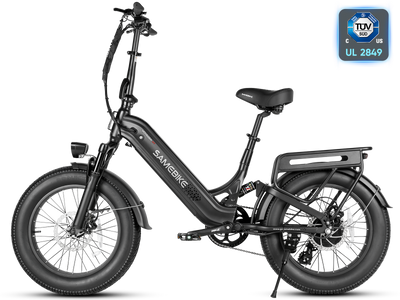

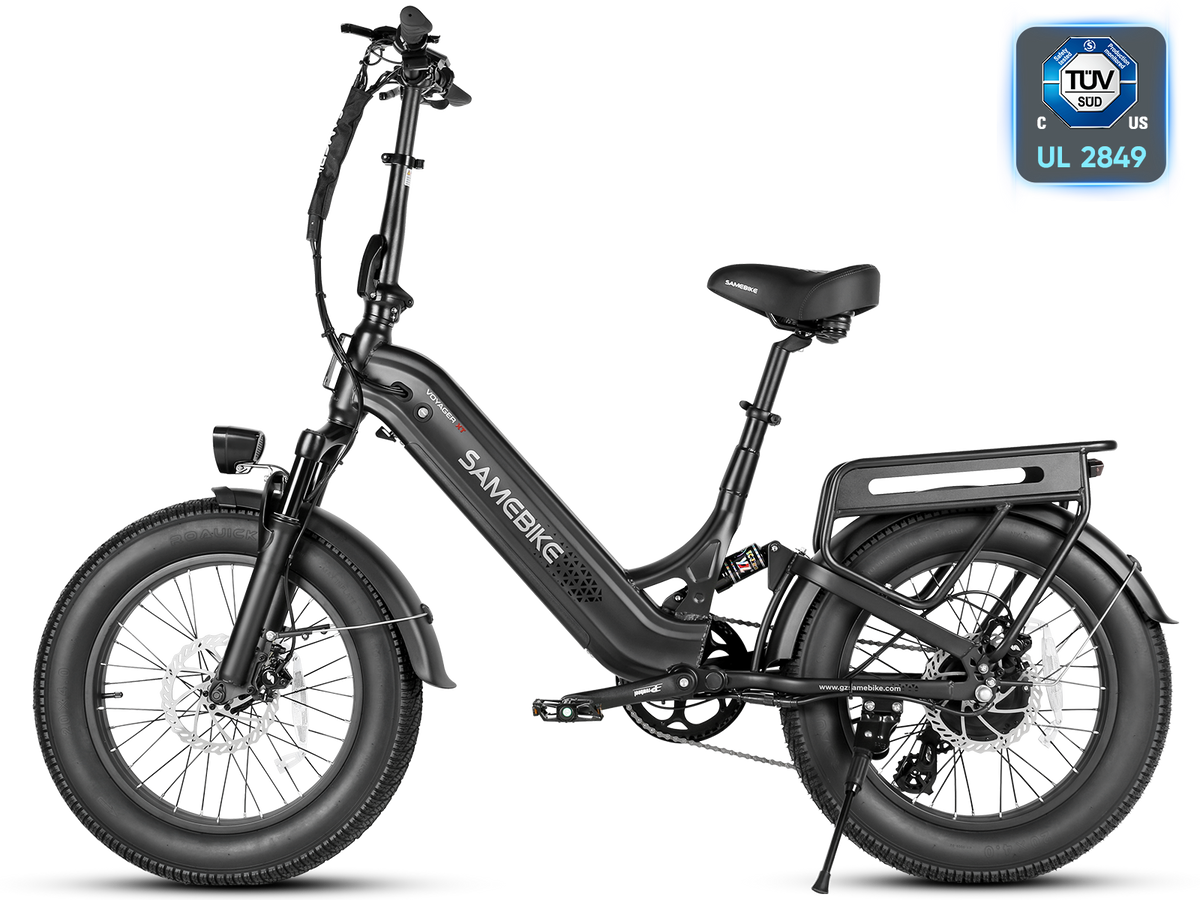

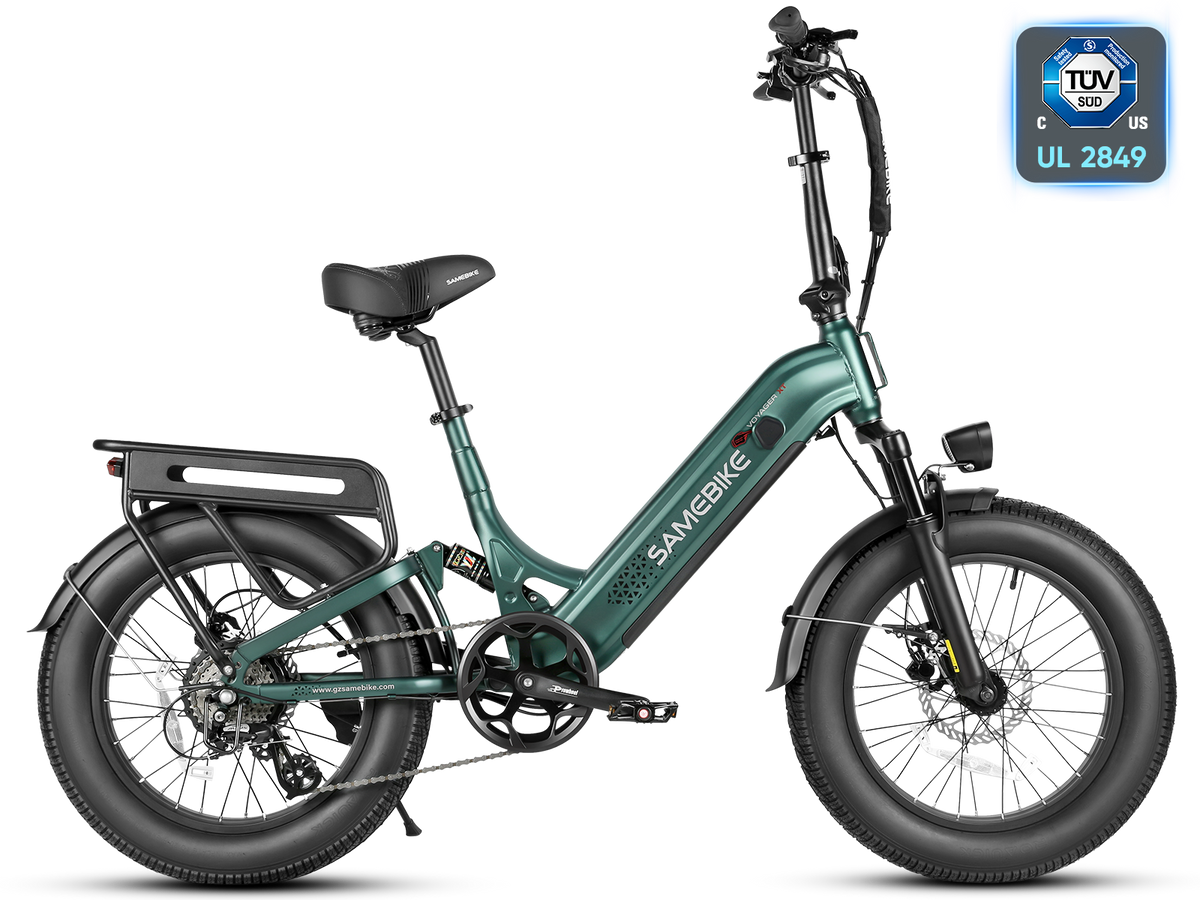

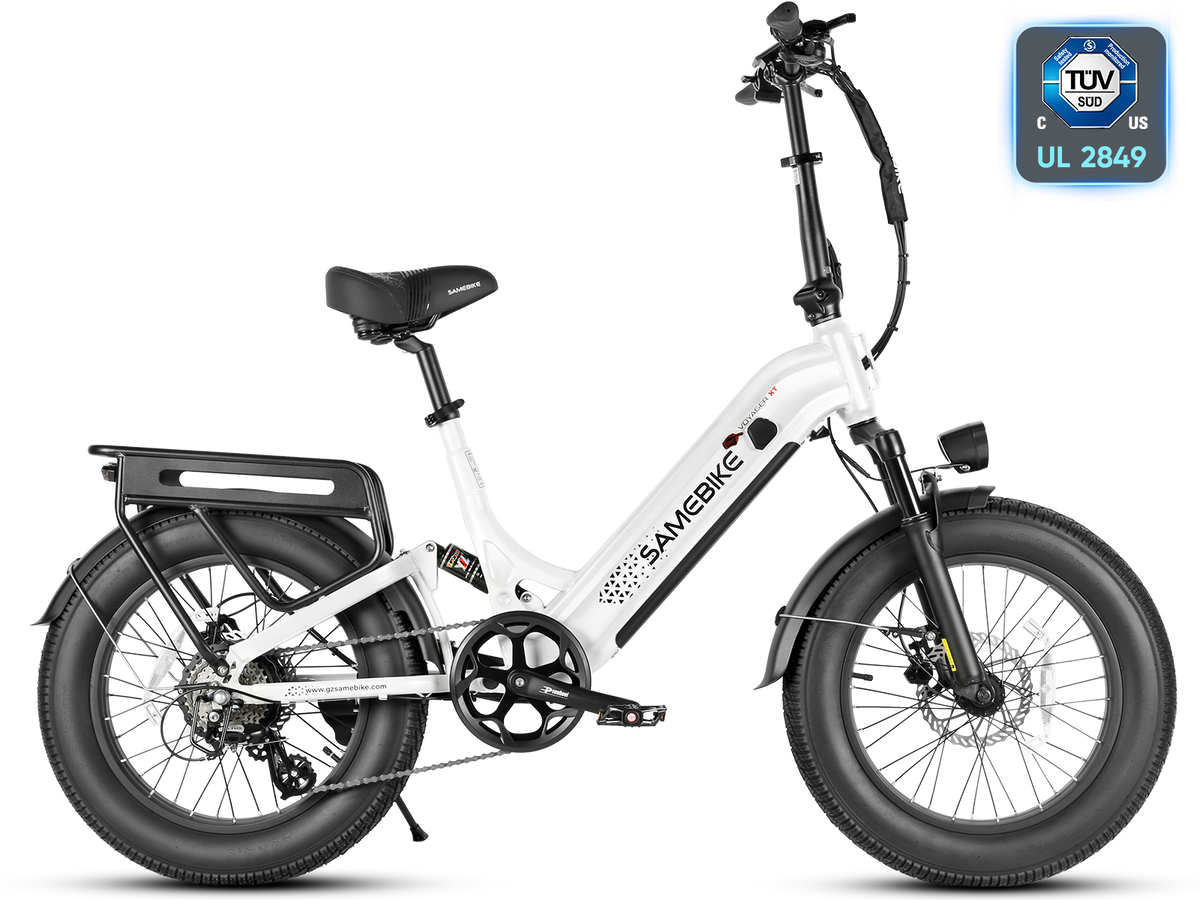

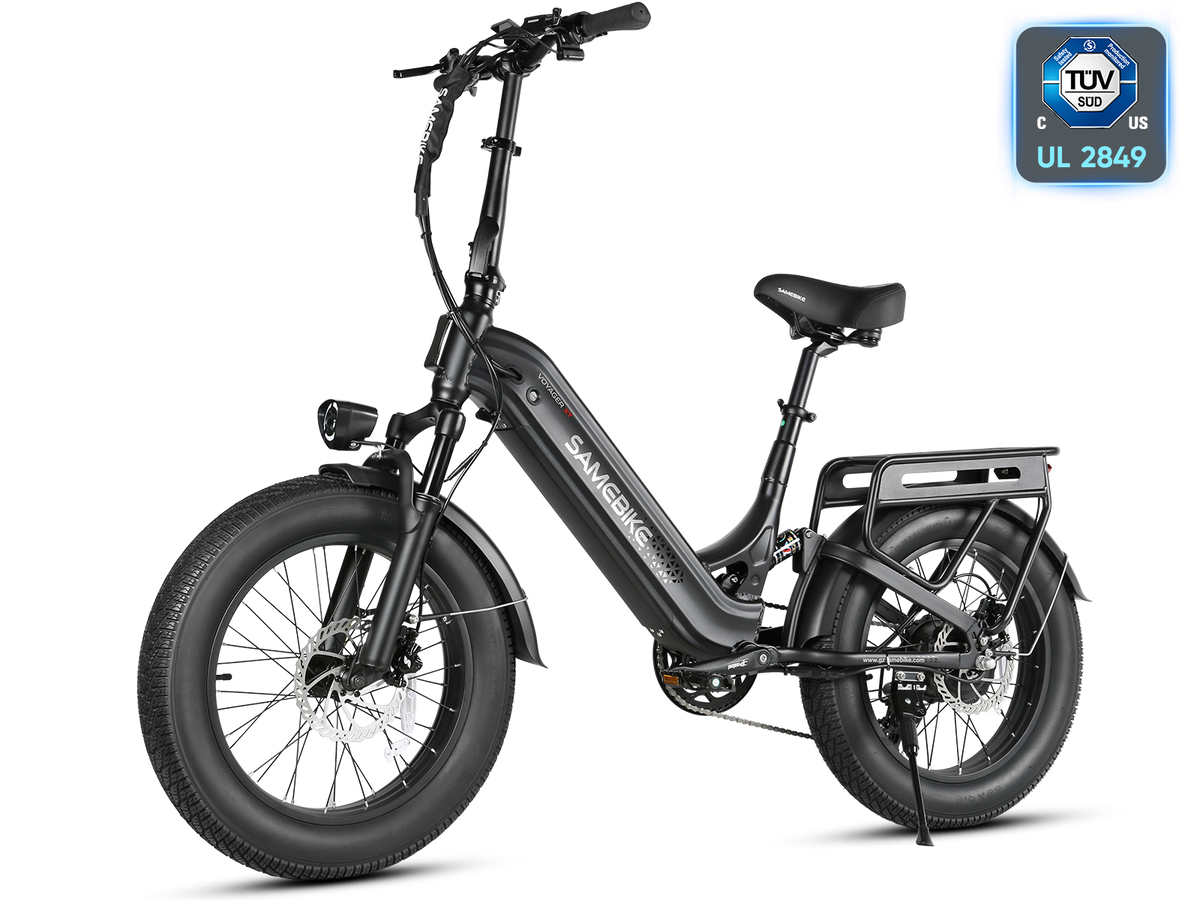

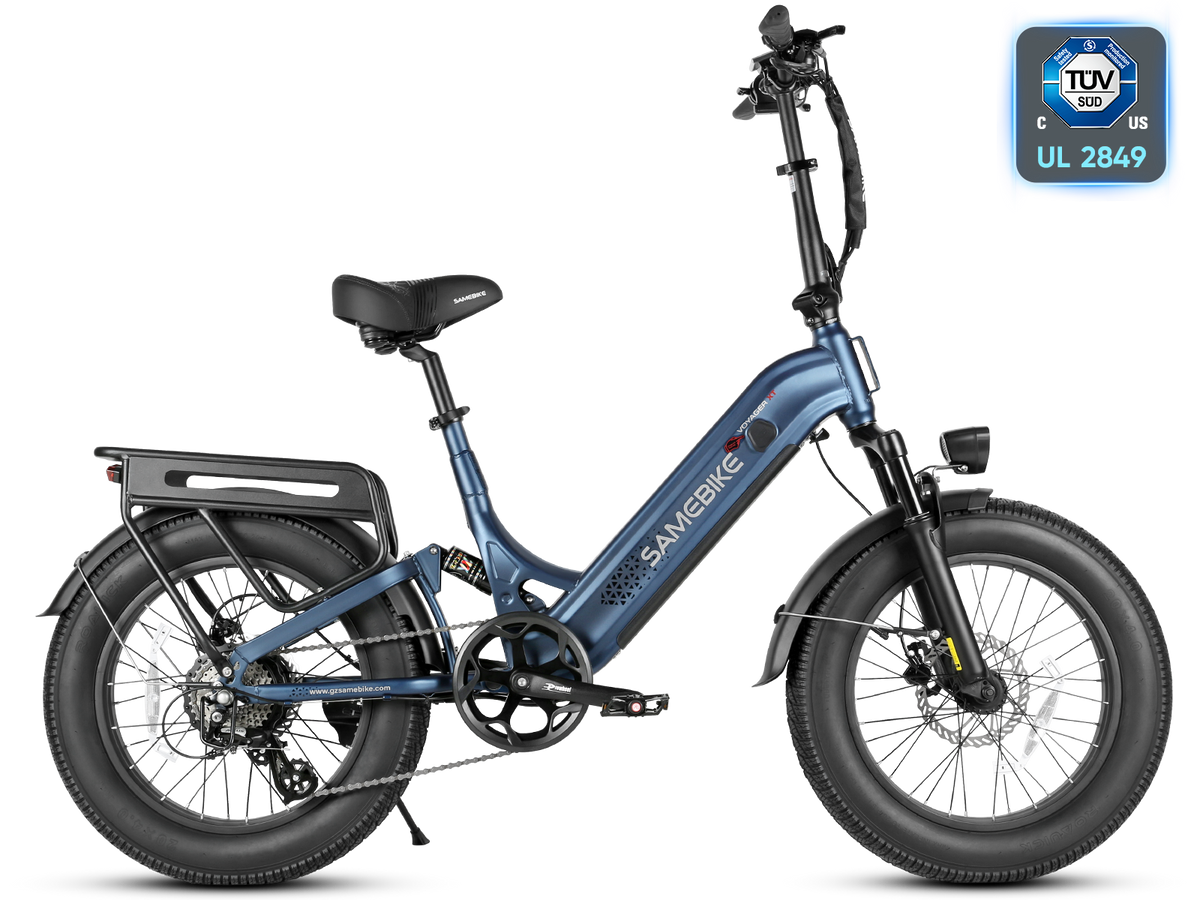

The VOYAGER in Black. White, Navy and Dark Green sell at the same $999: a low step-through frame with the pack in its down tube, a sprung fork, a rear shock behind the seat tube and the motor in the rear hub.
A 960 Wh pack and a 750 W rear hub with a 1500 W peak, on a step-through fat-tire frame with a fork, a rear shock, hydraulic discs, a rear rack and fenders, for $999.
The Samebike VOYAGER is a $999 step-through fat-tire city e-bike for riders from 5'3" who want a big battery without a top tube to clear: a 750 W rear hub (1500 W peak), a removable 960 Wh pack, hydraulic discs, a fork and rear shock, a rack and fenders. Free US shipping, and we file any warranty claim.
Add the VOYAGER to cartAdds the Black one; White, Navy or Dark Green are in the options above, at the same price.
- 960 WhOne 48 V 20 Ah pack
- 750 WRear hub, 1500 W peak
- Front and rearFork and shock
- HydraulicDisc brakes, 180 mm
- 20 × 4.0 inFat tires
Why the VOYAGER
The STORM's 960 Wh, at $999
The 48 V 20 Ah pack holds 960 watt-hours, the capacity Samebike gives its $1,599 STORM and CREST, and it comes out of the down tube with a key so you can charge it indoors. Samebike's manual puts it at about 87–99 miles (140–160 km) with pedal assist and 43–46 miles (50–55 km) in pure electric mode.

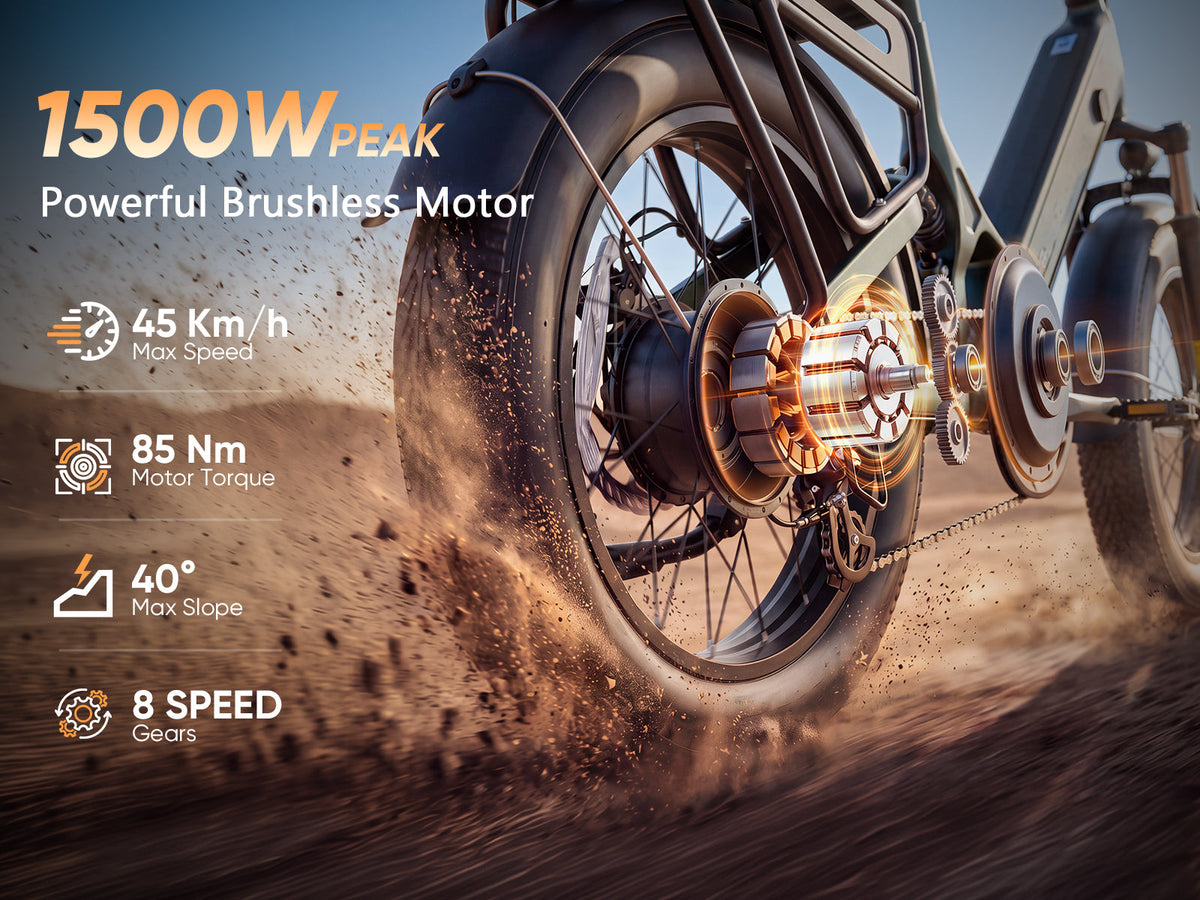

750 W rated, 1500 W at peak
Samebike's specification table rates the rear hub at 750 W with a 1500 W peak, and the line under the product title reads "High 85+Nm Torque". Press the detachable throttle and it pulls you along without pedaling, or ride through five assist levels in the Torque Mode or Cadence Mode Samebike's page describes.

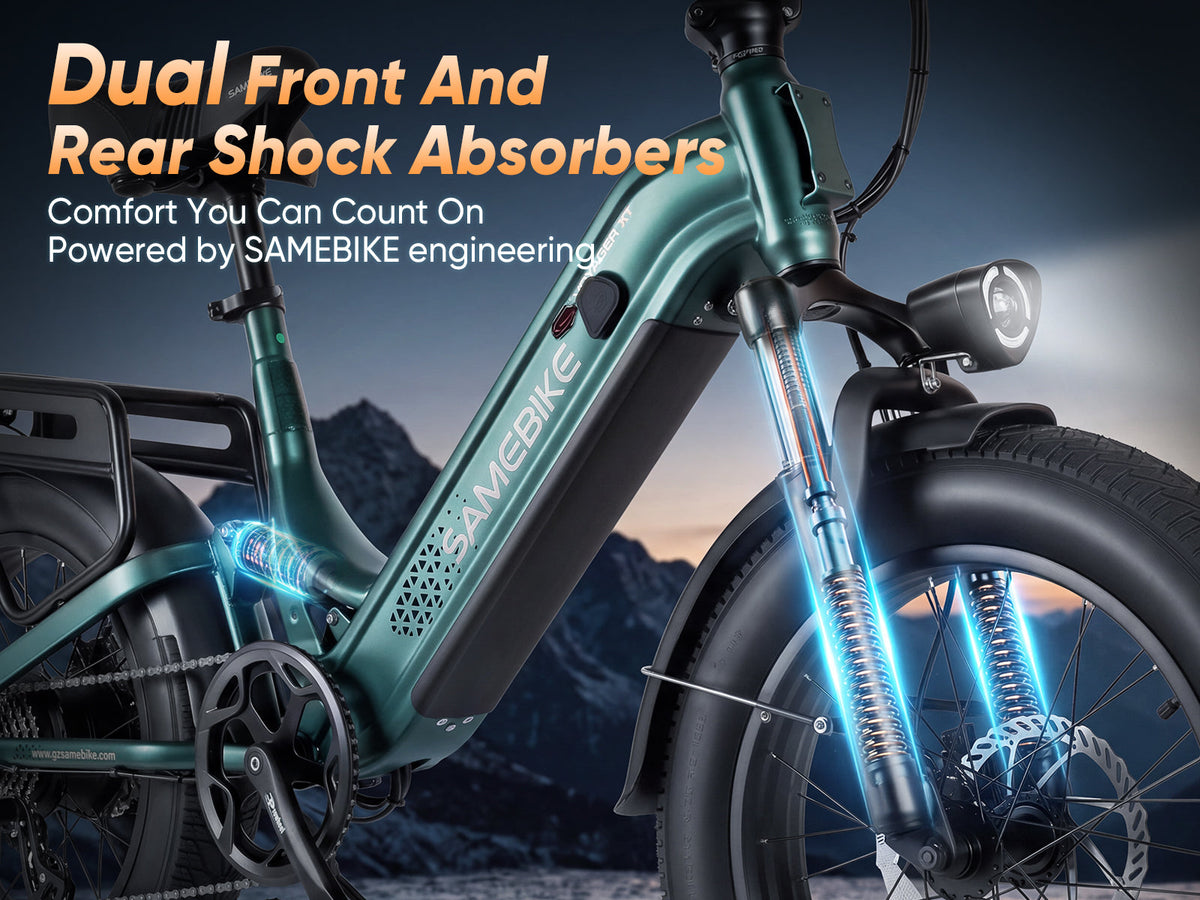

A sprung fork and a rear shock
The specification table lists a "Dual-shock front fork", and the page adds a rear shock with 30 mm of travel, which the manual's overall view labels behind the seat tube. Samebike says the pair keeps the ride smooth on rough or uneven ground, on tires already 4 inches wide.

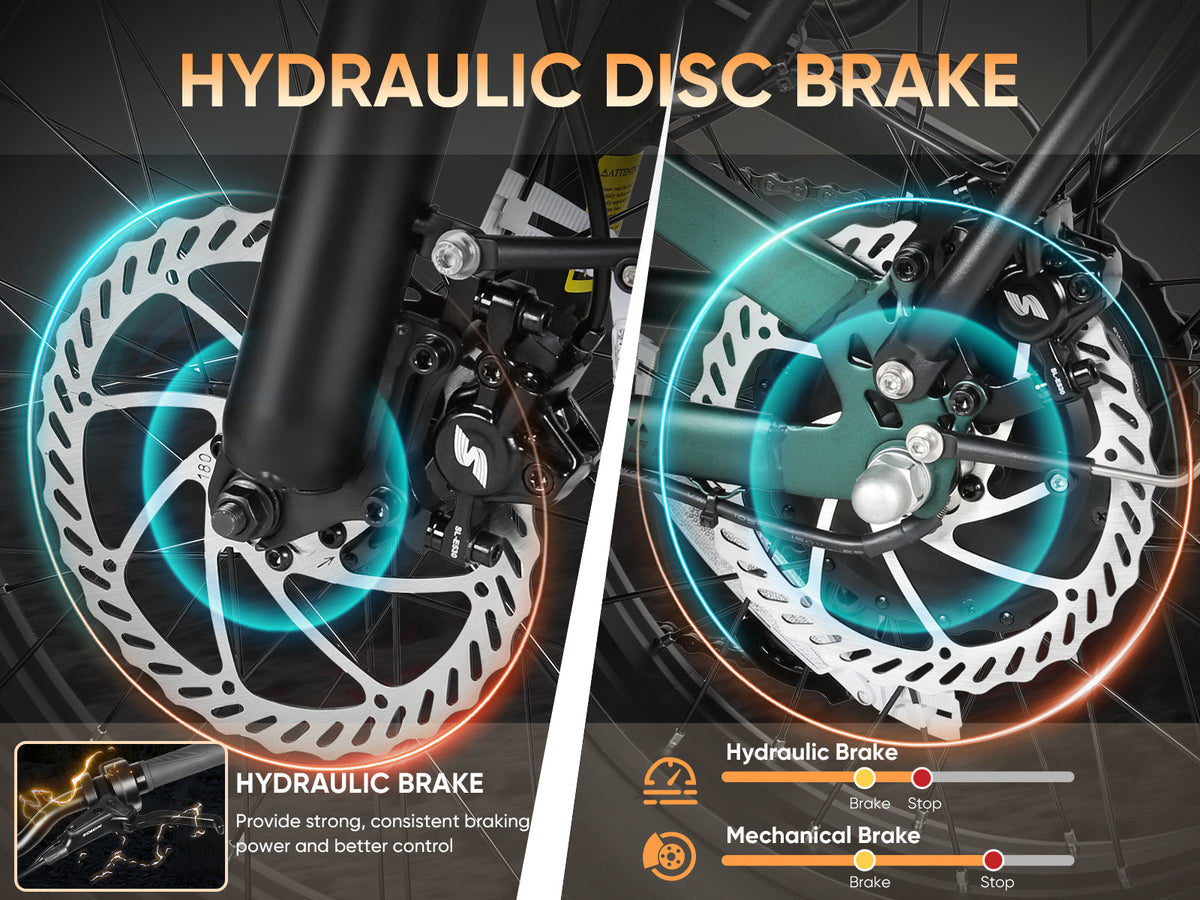

Hydraulic discs on 180 mm rotors
Both wheels stop on hydraulic discs, and the specification table sizes the rotors at 180 mm. Samebike's brake panel promises reliable stopping "with less maintenance", which counts when the bike, a rack bag and you add up to a few hundred pounds.

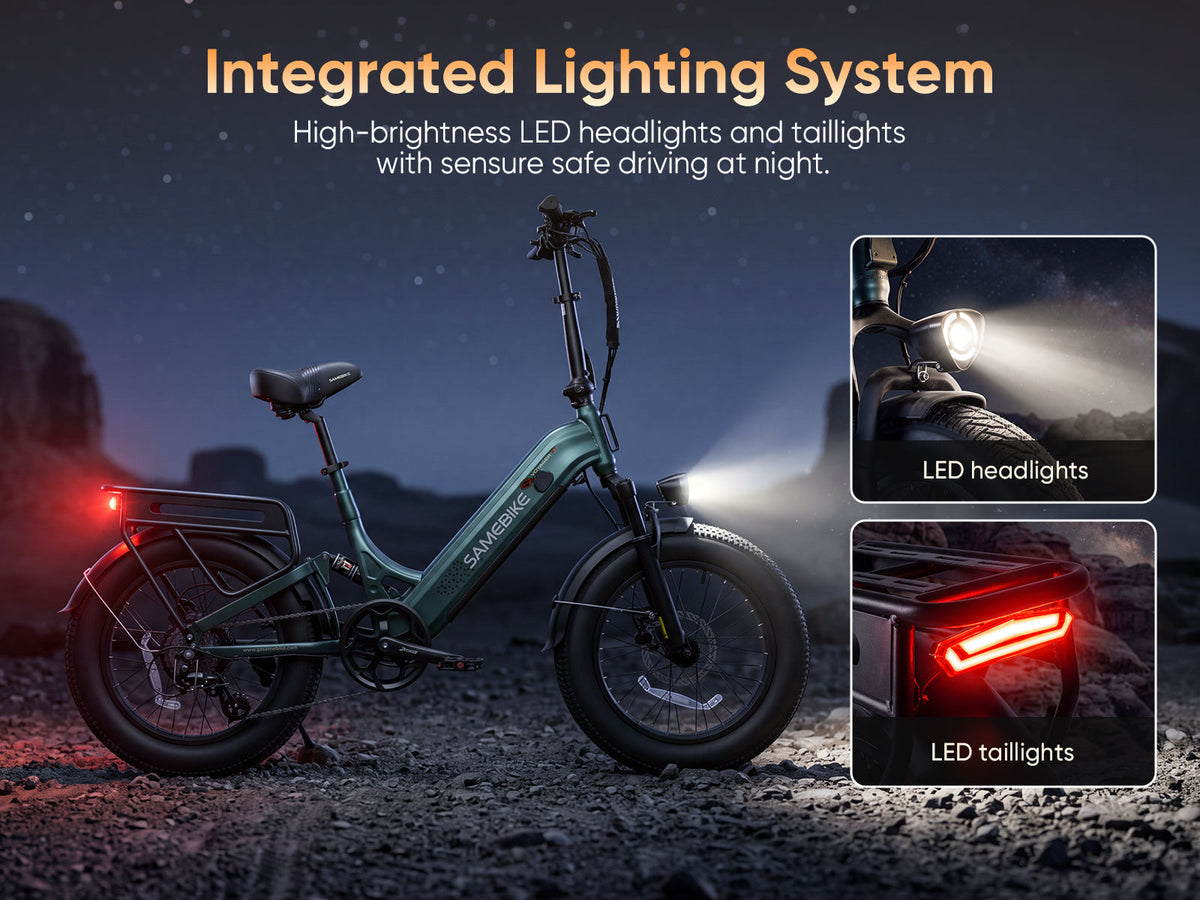

Rack, fenders and lights included
The manual's overall view shows a rear rack, front and rear fenders, a headlight and a taillight, and its control section adds an electric horn. Hold the light button and the headlight comes on with the display, so the bike is set for errands and the ride home after dark.

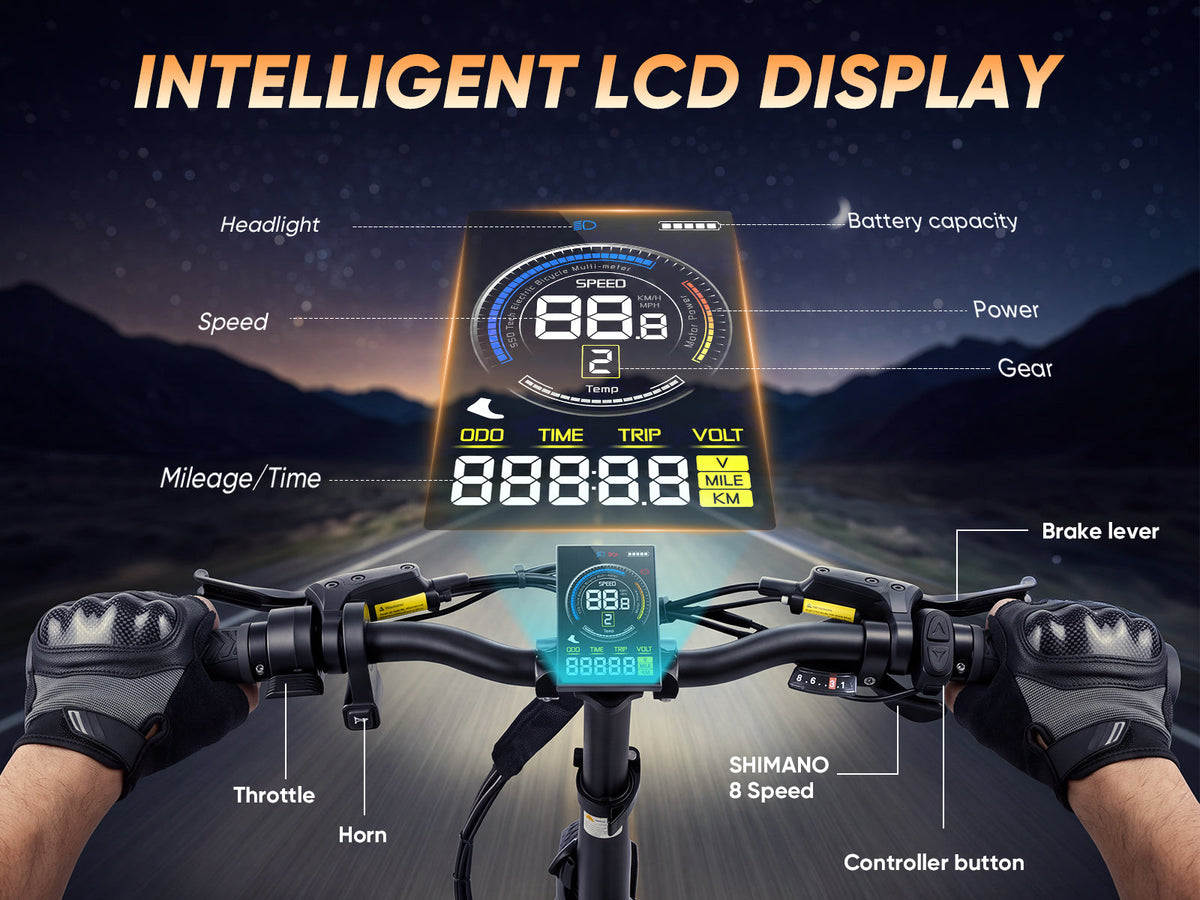

An LCD, a throttle and eight Shimano gears
The LCD shows your speed, battery level, assist level, trip distance and odometer. The throttle sits at your left hand and a Shimano eight-speed shifter at your right, so low gears help your legs on a climb while the hub does the heavy lifting.
What stands out on the spec sheet
- 960 Wh, the largest pack of any Samebike we sell under $1,000, by each model's US specification table.
- A sprung fork, a rear shock, 180 mm hydraulic discs and a Shimano eight-speed drivetrain at $999.
- A rear rack, front and rear fenders, a headlight, a taillight and an electric horn, in the VOYAGER manual.
- A step-through frame Samebike recommends for riders 160–210 cm (5'3"–6'11") tall.
- Four colors at one price: Black, White, Navy and Dark Green.
Why buy it from Redtail
The price
$999
Matched to Samebike’s own sale price for the VOYAGER, read October 2, 2026. Samebike’s regular price is $1,499.
Pay over time
4 interest-free installments
Shop Pay offers 4 interest-free installments on the $999 VOYAGER. Its sample plans read $333.00 every two weeks for six weeks at 0% APR, $999.00 in total or $90.17 a month for 12 months at 15% APR, $1,082.04 in total, subject to an eligibility check (read October 2, 2026).
Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.
Free US shipping
$0
Your VOYAGER ships free within the contiguous United States, leaves us within 1–3 business days, and its tracking number reaches your inbox the day it goes out.
We file the warranty claim
Done for you
Something fails? Send us photos or a short clip and your order number; we file the claim with Samebike and follow it until the fix or the part is in your hands.
US support
Real answers
Ask us before you order whether the 87 lb bike suits your stairs, how far 960 Wh takes your commute, or whether your bike path allows a throttle, and a US team member answers in writing.
Not sure about carrying 87 lb up your steps, or how far 960 Wh takes your daily route? Email support@redtailebikes.com before you order and we will answer in writing, then buy with the button above.
Who the VOYAGER fits
Samebike's size-and-fit drawing recommends the VOYAGER for riders 160–210 cm (5'3"–6'11") and sets the saddle 810–960 mm (31.9–37.8 in) off the ground. There is no top tube to swing a leg over: you step through the low frame at every stop.
It’s your bike if
- You want a 960 Wh pack, hydraulic discs and suspension at both ends for $999
- You would rather step through a frame than lift a leg over a top tube, and you stand 5'3" or taller
- You carry a bag or groceries on a rear rack and want fenders and lights from day one
- Your routes mix pavement and gravel, and Samebike's record says its 20 × 4.0 tires also take sand and snow
Want something different? We stock it
- If it has to fold for a car trunk or a closet, the RS-A02 Pro folds in half and keeps 20 × 4.0 tires, a fork and a rear shock, with a 720 Wh pack, for the same $999.
- If you would like bigger 26-inch wheels around the same 960 Wh pack, the CREST pairs that pack with a 1000 W rear hub (1800 W peak) and 26 × 4.0 tires on a frame with no top tube, for $1,599.
- If you carry the bike up stairs every day, the LO26 Plus weighs 30.5 kg (67.2 lb) on Samebike's table, folds, and rolls on 26 × 3.0 tires with a 720 Wh pack, for $999.
- If you would rather sit on a long moped-style bench, the M20 puts a long bench seat over a 1200 W rear hub and an 864 Wh pack, with hydraulic discs, also at $999.
What you get with the order
Shipping
Free shipping on every electric bike within the contiguous United States (lower 48).
Orders are prepared and dispatched within 1–3 business days. Most e-bikes arrive within 5–10 business days after dispatch, depending on location.
Delivery protection
Check the bike when it arrives. If anything is damaged, defective or wrong, note it with the carrier and email us photos within 48 hours of delivery, and we take it from there.
Returns
Change of mind on an unopened, factory-sealed bike: request the return within 72 hours of delivery. The restocking and return-shipping terms are in the Redtail Refund & Return Policy.
Alaska, Hawaii, U.S. territories, P.O. boxes and remote routes are quoted case by case: send us your ZIP code before you order and we will confirm the route in writing. Full terms: Redtail Shipping Policy · Redtail Refund & Return Policy.
Owning it in your state
Samebike publishes no e-bike class for the VOYAGER, so the rules where you ride come from your own state's definition.
That definition reads the figures Samebike prints: a 750 W motor that peaks at 1500 W, 45 km/h (28.0 mph) on the specification table, and a detachable throttle that moves the bike on motor power alone. On October 2, 2026, our search of the CPSC's federal recall database found no recall naming Samebike.
The rules for where you ride are in our state-by-state e-bike law guide.
The VOYAGER beside three other Samebikes we sell
Every figure is Samebike’s own, from each model’s US specification table as read on October 2, 2026; prices are ours, matched to Samebike’s the same day. Every column heading links to that bike.
| Spec | VOYAGER | RS-A02 Pro | LO26 Plus | CREST |
|---|---|---|---|---|
| Price | $999 | $999 | $999 | $1,599 |
| Motor | 750 W rated, 1500 W peak | 1000 W rated, 1500 W peak | 1000 W rated, 1500 W peak | 1000 W rated, 1800 W peak |
| Battery | 48 V 20 Ah (960 Wh) | 48 V 15 Ah (720 Wh) | 48 V 15 Ah (720 Wh) | 48 V 20 Ah (960 Wh) |
| Top speed | 45 km/h (28.0 mph) | 40 km/h (24.9 mph) | 40 km/h (24.9 mph) | 50 km/h (31.1 mph) |
| Tires | 20 × 4.0 in | 20 × 4.0 in | 26 × 3.0 in | 26 × 4.0 in |
| Brakes | Hydraulic disc | Mechanical disc | Hydraulic disc | Hydraulic disc |
| Suspension | Dual-shock front fork + rear shock† | Adjustable front fork + rear suspension | Adjustable front fork + rear shock† | Dual-shock front fork + rear shock† |
| Weight | 39.5 kg (87.1 lb) | 33 kg (72.8 lb) | 30.5 kg (67.2 lb) | 45 kg (99.2 lb) |
| Payload | 150 kg | 150 kg | 150 kg | 150 kg |
| Folds | No | Yes | Yes | No |
† For the VOYAGER, the specification table's suspension entry reads "Dual-shock front fork"; its product page carries a panel headed "Rear Shock".
† For the LO26 Plus, the specification table's suspension entry reads "Adjustable front fork"; its product page describes "hydraulic rear shocks".
† For the CREST, the specification table's suspension entry reads "Dual-shock front fork"; its product page carries a panel headed "Rear Shock".
Full specifications
| Model | VOYAGER; Voyager XT in the manual, SKUs VOYAGER-XT-FT |
| Motor | One 750 W hub motor in the rear wheel |
| Peak power | 1500 W on the specification table, the title and the stat strip |
| Torque | "High 85+Nm Torque" under the US page's title |
| Battery | 48 V 20 Ah (960 Wh), removable with a key from the down tube |
| Range, specification table | 160 km (99 mi) "Max Range" |
| Range, manual | Approx 87–99 miles (140–160 km) in pedal-assist mode and approx 43–46 miles (50–55 km) in pure electric mode |
| Top speed | 45 km/h (28.0 mph) on the specification table, stat strip and motor graphic |
| Brakes | Hydraulic disc, front and rear, 180 mm rotors |
| Suspension | "Dual-shock front fork"; a rear shock with 30 mm of travel on the product page |
| Drivetrain | Shimano 8-speed |
| Assist | 5 pedal-assist levels, with a Torque Mode and a Cadence Mode on the product page |
| Throttle | "Detachable throttle" on the specification table |
| Display | LCD: speed, battery level, assist level, trip and total distance, time and voltage |
| Tires | 20 × 4.0 in |
| Frame | High carbon steel, step-through; the frame does not fold, and the handlebar stem has a folding clasp |
| Weight | 39.5 kg (87.1 lb) |
| Load capacity | 150 kg (330.7 lb) on the specification table and size-and-fit drawing; 120 kg (265 lb) as "Max Load" in the manual |
| Size | 172 × 63 × 113–125 cm (67.7 × 24.8 × 44.5–49.2 in) |
| Seat height | 810–960 mm (31.9–37.8 in) on the size chart |
| Wheelbase | 1120 mm (44.1 in) |
| Handlebar | Adjustable; 630 mm (24.8 in) wide on the size chart |
| Recommended rider height | 160–210 cm (5'3"–6'11") on Samebike's size-and-fit drawing |
| Charging time | 6–8 hours on the specification table and in the manual |
| Charger | 100–240 V input, 54.6 V 3 A output, in the manual |
| Maximum climb | 40 degrees, in the manual |
| Water resistance | IP64 for the whole bike in the product page's FAQ; IP34 in the manual |
| Lights and horn | LED headlight and taillight; electric horn |
| Rack and fenders | A rear rack and fenders front and rear |
| Colors | Black, White, Navy, Dark Green |
| Shipping box | 1420 × 280 × 720 mm (55.9 × 11.0 × 28.3 in), 44.5 kg (98 lb), in the manual |
Samebike’s figures, from its US product page and specification table (us.samebike.com/products/voyager-large-battery-fat-tire-powerful-peak-1500w-city-electric-bike) and its owner’s manual, read October 2, 2026. Metric-to-US conversions are ours.
What we counted. By the US specification tables of the eleven Samebike models we sell, three carry Samebike's largest single pack, 48 V 20 Ah (960 Wh): the STORM and the CREST at $1,599, and the VOYAGER at $999. Of the four we sell at $999 it carries the most, against 864 Wh on the M20 and 720 Wh on the RS-A02 Pro and the LO26 Plus; the M20-III holds more in total, 1,728 Wh across two packs.
Read from the US specification table of each of the eleven Samebike models we sell, with our own listing prices, on October 2, 2026.
Where Samebike prints two figures
Samebike's page, record, gallery and manual sometimes give the VOYAGER more than one figure for the same thing. Each one is below, and the table above leads with the specification table's.
- Motor: 750 W rated and 1500 W peak on the specification table, the product record, the title and the stat strip, with 45 km/h on the table; one motor panel lower on the page reads "1000W (Peak 1800W)" and "max 50KM/H".
- Motor count: the page's "What is VOYAGER" line calls it a "dual-motor eBike"; the specification table lists one 750 W motor, and the manual's overall view labels one motor, in the rear wheel.
- Range: 160 km "Max Range" on the specification table; 70–160 km on the stat strip; up to 93 miles on the range panel, "Measured in Mode 1, Level 1 pedalassist under controlled conditions"; over 100 km "in mild electric mode" on the battery panel; and the manual's two bands, as printed above.
- Load: 150 kg (330.7 lb) on the specification table and the size-and-fit drawing; 120 kg (265 lb) as "Max Load" in the manual's specification table. Plan on 265 lb of rider and cargo together.
- Water resistance: IP64 for the whole bike in the product page's FAQ, IP34 in the manual, and IP54 on a battery graphic in Samebike's gallery.
- USB: "USB Charger: No" on the specification table, while the page's smart-riding panel mentions "convenient USB ports for charging your devices".
- Battery position: Samebike's photographs and the manual's overall view put the pack in the down tube, removed with a key, while the page's battery panel describes a "960Wh seat-integrated battery".
- Size: 172 × 63 × 113–125 cm on the specification table and 1730 × 620 × 1210 mm in the manual.
- Warranty: the policy block on the VOYAGER's page reads "12 Months Warranty" and its FAQ "1-3 year"; the warranty cards below quote Samebike's warranty policy page.
Straight answers before you order
The VOYAGER weighs 39.5 kg (87.1 lb), and its frame does not fold.
It rolls to your door free in the lower 48. For stairs, take the pack out with its key first and bring a second pair of hands; for a car trunk, the RS-A02 Pro folds in half for the same $999. See the RS-A02 Pro.
Samebike prints two load figures: 150 kg (330.7 lb) on its specification table and 120 kg (265 lb) as the manual's "Max Load".
Plan on 265 lb of rider and cargo together. Need more than that? Email us before you order and we will put the question to Samebike and send you its answer in writing.
Samebike's longest range figures are best cases: the range panel ties its 93 miles to pedal-assist level 1, and the manual gives 43–46 miles in pure electric mode.
Plan a throttle-only commute on the manual's 43–46 miles, and pedal along to stretch it; no Samebike we sell under $1,000 carries a bigger pack than these 960 Wh.
Manuals and assembly
The Voyager XT manual's assembly chapter: set the handlebar stem's height, never past its highest mark, and lock its folding buckle, fit the front fender and headlight, set the front wheel in the fork with the rotor in the caliper slot and close the quick-release lever, fix the rear mudguard strips, thread the pedals marked L and R into their cranks, then set the saddle height and close its quick release. The box holds the bike, the battery charger and a toolkit of two large wrenches and six Allen keys. Stuck on a step? Email us the step number and we will talk you through it.
Warranty cover, and who files the claim
A fault is our job
If the bike will not power on, will not charge, shows an error code or has a faulty component, send photos or video and your order number. We open the claim with Samebike and coordinate the repair or replacement remotely, start to finish.
What Samebike publishes
Samebike’s warranty policy states: “Frame warranty for 3 years, batteries, motors and other accessories warranty for 1 year.” After the first year, a battery earns “a prorated credit, based on months of service,” toward a new one.
Samebike’s terms, from its Samebike Warranty Policy (us.samebike.com/pages/warranty-policy), read September 26, 2026.
Wear items
Samebike’s policy lists brake pads, rotors, spokes, tires and tubes, chains, chain rings, cassettes and the crankset among the parts not typically covered, as ordinary wear and tear.
Frequently asked questions
How far can the Samebike VOYAGER go on one charge?
Samebike's manual gives about 43–46 miles (50–55 km) in pure electric mode and about 87–99 miles (140–160 km) with pedal assist, and its specification table lists a 160 km (99-mile) maximum. Your speed, weight, tire pressure and hills move that number, so plan a throttle commute on the lower band.
What is the top speed of the Samebike VOYAGER?
45 km/h (28.0 mph) on Samebike's specification table, stat strip and motor graphic. If your state's rules turn on top speed, email us before you order and we will get Samebike's written figure for the bike you buy.
Is the Samebike VOYAGER a folding e-bike?
No. Samebike's specification table lists it as not foldable; the handlebar stem has a folding clasp, but the frame stays in one piece. If it must fold, the RS-A02 Pro does, on the same 20 × 4.0 tires and at the same $999.
Does the Samebike VOYAGER have dual motors?
No, one. A line on Samebike's page calls it dual-motor, but its specification table lists a single 750 W motor (1500 W peak) and the manual labels one motor, in the rear wheel. For two motors, the M20-III puts a 1000 W hub in each wheel.
How much does the Samebike VOYAGER weigh?
39.5 kg (87.1 lb) on Samebike's specification table and size-and-fit drawing, and 87 lb in the manual. Boxed, it ships at 98 lb (44.5 kg), so plan on help carrying it up steps.
What is the VOYAGER's weight limit?
Samebike's specification table prints 150 kg (330.7 lb), while the manual's own table gives 120 kg (265 lb) as the maximum load. Plan on 265 lb of rider and cargo, and email us before you order if you need more.
How do you charge the VOYAGER, and how long does it take?
6 to 8 hours, by Samebike's specification table and the manual. Plug the 54.6 V, 3 A charger into the port under the rubber cover on the bike, or take the pack out with its key and charge it indoors; the charger's light tells you it is charging.
How do you remove the VOYAGER's battery?
Turn the key until the pack pops out slightly, rotate the retaining clip, then press the top of the pack with both hands and pull it out, as the manual's battery section shows.
What rider height fits the VOYAGER?
Samebike recommends 160–210 cm (5'3"–6'11") on its size-and-fit drawing, with the saddle adjustable from 810 to 960 mm (31.9–37.8 in) off the ground. The step-through frame leaves no top tube to clear.
Does the VOYAGER come with a rack and fenders?
Yes. The manual's overall view shows a rear rack, front and rear fenders, a headlight and a taillight, and its assembly steps cover fitting the fenders.
Which Voyager e-bike is this?
Samebike's. Its manual names the model Voyager XT and its SKUs begin VOYAGER-XT-FT: a 20-inch fat-tire step-through with one 750 W rear hub, a 48 V 20 Ah pack and a rear rack. Check those figures when you compare bikes that share the name.
Is the VOYAGER street legal, and what class is it?
Samebike assigns it no class, so your state's definition decides, and that definition reads Samebike's figures: a 750 W motor with a 1500 W peak, 45 km/h on the specification table and a throttle that works without pedaling.
Can I pay for the VOYAGER in installments?
Yes. On October 2, 2026 Shop Pay's widget on this page offered 4 interest-free installments of $333.00 every two weeks for six weeks at 0% APR, or $90.17 a month for 12 months at 15% APR, $1,082.04 in total, subject to an eligibility check.
Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.
Is Samebike a legit brand?
The VOYAGER manual's back page names Guangzhou Sameway Electric Bicycle Co., Ltd., at a factory address in Guangzhou, for after-sales questions. Our search of the CPSC recall database on October 2, 2026 found no Samebike recall, and a warranty claim on your VOYAGER comes to us first.
Buy the VOYAGER nowOne click, straight to Shop Pay checkout — 4 interest-free installments available.
Keep looking
Every Samebike at Redtail · Compare the RS-A02 Pro · Compare the LO26 Plus · Compare the CREST · E-bike laws in your state
Primary sources
- Samebike, VOYAGER Large Battery Fat Tire Powerful Peak 1500W City Electric Bike, US product page and specification table, us.samebike.com/products/voyager-large-battery-fat-tire-powerful-peak-1500w-city-electric-bike. Retrieved October 2, 2026.
- Samebike, Voyager XT product instruction manual (12 pages), English, cdn.shopify.com/s/files/1/0684/9173/9372/files/Voyager_XT_manual.pdf. Retrieved October 2, 2026.
- Samebike Warranty Policy, us.samebike.com/pages/warranty-policy. Retrieved September 26, 2026.
- Redtail Shipping Policy. Retrieved September 26, 2026.
- Redtail Refund & Return Policy. Retrieved September 26, 2026.
- Our state-by-state e-bike law guide. Retrieved September 26, 2026.
How we verified this page. Every specification above was read from Samebike’s own US product page and specification table and checked against its owner’s manual on October 2, 2026; every metric-to-US conversion is recomputed, and where Samebike prints two figures for one thing, both are listed above with the one this page uses. Prices and stock were read from our store and matched to Samebike’s US store the same day. Corrections: support@redtailebikes.com.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Fast U.S. Shipping
Exceptional Service
At Redtail eBikes, we go beyond just selling ebikes. We're dedicated to offering the best customer service and support to ensure you're fully satisfied. Your happiness is our priority, and we're here to make your experience as smooth as your ride.
Blog posts
