VTUVIA SF20H Review 2026: Folds, Seats Two, 672 Wh

$1,299 · a rear hub motor rated at 750 W, 1,200 W peak, 85 N·m · a 48 V 14 Ah LG pack of 672 Wh, certified to UL 2271 · Class 2 as delivered, 20 mph · 20 × 4.0 fat tires and hydraulic brakes · folds; 60 or 70 lb, 330 lb total capacity · verified September 28, 2026

Quick Answer — The SF20H is VTUVIA's folding step-through with a cushioned passenger seat on a welded rack: a 750 W rear hub motor, a 672 Wh pack certified to UL 2271 and a 330 lb capacity, for $1,299. Carrying a 180 lb rider at 15 mph on the throttle over level pavement, one charge computes to about 37 miles.

Pedal lightly at that 15 mph and the figure grows to 56 miles; hold 20 mph on the throttle and it falls to 26. VTUVIA's specification prints 70 miles on pedal assist and 40 on the throttle alone, and the range tables turn both into your own ride.

VTUVIA ships the SF20H as a Class 2 bike set to 20 mph, and its 750 W rating sits where the federal and California definitions read differently; the class section prints both texts.

What this review covers

The specification · What it is · Fit · The motor · The battery · Range · Brakes, display and lights · Fork, tires and gears · Folding, weight and the passenger seat · The Mercer fit test · UL · Recalls · Class · Trails · Green and red flags · The verdict · Checklist · Buying it from us · FAQ · Limitations · The bottom line · References

How we verified this VTUVIA SF20H review

Every figure below was read on September 28, 2026, from VTUVIA's SF20H product page, its product record, VTUVIA's SF20H specifications page and size chart, our own listing and the statutes quoted in the class section. Range and fit are computed, and each section's formula lists what goes into it.

This is a specification-verified review: each number traces to VTUVIA, to a statute or to arithmetic shown on the page, and the range model reproduces its published benchmarks before it computes anything. We sell the SF20H, so weigh the red flags as heavily as the green ones.

Written by Milad Ghobadibeygvand, BScN (Western University, 2014). Corrections: support@redtailebikes.com.

The SF20H on paper: VTUVIA's specification

The rows are VTUVIA's own words and figures as they read on September 28, 2026: the specification table and FAQ of the SF20H page, the specifications page for the 70 lb weight, the 9.35 lb pack, the 52 miles and the 5-to-6-hour charge, and the size chart for the lengths. The 672 Wh is 48 V times 14 Ah.

Four figures come in pairs. VTUVIA prints two weights, two range sets, two charge times and two folded sizes for the SF20H; this page prints both of each, and plans on the heavier weight and the longer charge.

A folding fat-tire bike with a seat for a second rider

The SF20H is VTUVIA's utility folder. The frame hinges in the middle, the rack is welded to the frame, and on that rack sit a leather-covered rear seat and a pair of foot pegs. VTUVIA's page says the rack is "designed for both carrying cargo and passengers" and rates the whole bike to 330 lb.

White, in VTUVIA's studio photograph: the step-through frame lettered VTUVIA, the pack behind the seat post, the padded rear seat on the welded rack, the suspension fork and the 20 × 4.0 tires.

The name has a history. In an October 20, 2022 post, VTUVIA introduced "a new upgraded version of our VTUVIA SF20, it's the VTUVIA SF20-H, also we call it VTUVIA SF20 Pro", with a "frame welded rear rack". That version carried a 48 V 13 Ah pack, 80 N·m and mechanical disc brakes, in the same post's words.

Then, in an April 18, 2024 post, VTUVIA moved the SF20H to hydraulic disc brakes and a color display, took the pack "from 13ah to 14ah" with LG cells, and announced UL 2271 for the pack and UL 2849 for the bike. The SF20H on VTUVIA's page and on ours today is that 14 Ah, hydraulic, UL-certified build.

Match that generation when you buy parts. On our parts shelf, VTUVIA's own fitment labels split the two: hydraulic pads for the "SF20H-UL" and mechanical pads for the "Old-SF20H", and a 48 V 25 A controller sold as "UL-SF20H".

Great bike easy to assemble no issues at all.

One of 167 owner reviews on VTUVIA's SF20H page, quoted word for word; the reviewer's bike is a Black one. On September 28, 2026 the page showed those 167 reviews averaging 4.9 of 5, and 151 of them at five stars.

Black, folded, in VTUVIA's photograph: the frame hinged in half with the front wheel tucked beside the rear, the saddle and the padded rear seat on top, and SF20H on the chainstay.

On paper, then, the SF20H is a 20-inch fat-tire folder built around a two-person rack, with a 750 W rear motor and a certified 672 Wh pack, for $1,299.

Does the SF20H fit you? Saddle, step-through and reach

VTUVIA sizes the SF20H for riders from 5'3" to 6'2" with a 28- to 34-inch inseam, and at 109% of inseam the formula puts the top of the saddle 32.8 inches from the pedal axle for the median 5'3" rider in the US Army's ANSUR II survey, and 39.3 inches for the median 6'2" rider.

That distance runs from the center of the lowest pedal's axle, with the crank pointing down along the seat tube, to the top of the saddle, and you can measure it at home with a tape. The tables run the Army survey's 6,068 measured bodies through the formula at every height in VTUVIA's window.

Find your fit in three steps:

1. Measure your inseam in socks. With your back to a wall, pull a hardcover book up snugly between your legs, spine up like a saddle, and have someone read the tape from the floor to the book's top edge.
2. Find your height in the saddle table and check that your inseam sits inside that row's range, and inside VTUVIA's recommended 28 to 34 inches.
3. When the bike arrives, set the saddle top at your row's distance from the pedal axle, and let the knee and heel checks decide the final height.

How high should the saddle go?

Between 32.8 and 39.3 inches above the pedal axle: 32.8 for the median 5'3" rider and 39.3 for the median 6'2" rider. Each figure is 109% of the median inseam in that row, the multiple Peveler et al., 2005 evaluated, measured from the pedal axle, and the two right-hand columns show where the ends of the band in Ferrer-Roca et al., 2012, 106% and 110.4%, would set your saddle.

The formula's distance from the pedal axle, with the crank pointing down along the seat tube, to the top of the saddle, for the median rider at each height at 109% of inseam, and at the band's two ends, 106% and 110.4%. The inseam ranges come from the Army's ANSUR II survey, women and men combined, and stretch from the 5th percentile to the 95th at each height.

Check your inseam against VTUVIA's 28 to 34 inches first if you are 5'11" or taller. The survey's median inseam is 34.3 inches at 5'11" and 36.0 inches at 6'2", so riders at the top of VTUVIA's 5'3" to 6'2" window are the ones whose legs reach past its recommended inseam.

VTUVIA prints the seat itself as 29 inches at its lowest and 34 at its highest. Its specification table calls the low figure "Minimum seat to floor", and its size chart draws both along the seat tube from the crank. Setting those two figures against the formula would take the crank length and the crank axle's height above the floor, so the table works from the pedal axle, a point you can find on the bike itself (Limitations).

Can I put a foot down at a stop?

Yes, at every height in VTUVIA's window: 95 of every 100 riders at 5'3" clear VTUVIA's 16-inch step-through height by 12.7 inches or more, and at 6'2" by 18.3 inches or more. The frame dips low between the seat post and the head tube, so you step through it instead of swinging a leg over a bar.

Barefoot inseam minus VTUVIA's 16-inch "Standover height", from the survey bodies at each height. The middle column is the median inseam; the last column is the clearance that 95 of every 100 riders at that height have or beat.

VTUVIA's SF20H size chart, with the lengths, seat heights and standover its specification table repeats. Its folded size differs from the one in the product page's text, and the folding section prints both.

Will I feel cramped, or stretched out?

That depends on where you set the stem: VTUVIA prints the handlebar at 44 to 48.4 inches off the ground on an adjustable stem, and the higher you set it, the more upright you sit. In a study by Priego Quesada et al., 2017, twenty recreational riders tried three trunk angles and rated the most upright the most comfortable.

A lean angle needs the grip position, so it is not computed here. VTUVIA's specification lists an "Aluminum Alloy Adjustable" stem and a 24-inch bar: raise the stem if you reach down to the grips, and lower it if your arms feel bent and your weight sits back.

How much weight goes on my hands?

The more upright you sit, the less of your weight your hands carry, so on the SF20H the stem height is your wrist setting. A hand-load figure needs the grip position and is not computed here; for scale, ten road racers on the brake hoods put 15% of their weight on the bars in a laboratory study (Carahalios, 2015).

If your palms or wrists ache on longer rides, raise the stem and bring the grips toward you: an upright trunk hangs more of its weight on the saddle (Clauser et al., 1969 give each body segment's share of body weight). Across 36 riders, padded gloves lowered the pressure over the ulnar nerve by 10 to 28% (Slane et al., 2011), and VTUVIA's photographs show stitched ergonomic grips.

How do I set the saddle when it arrives?

Start at your row's distance, then check your knee: with the pedal at the bottom of its stroke it should stay bent 25 to 35 degrees (Peveler et al., 2007). For a quick first setting, rest your heel on the pedal while it sits at its lowest point and raise the saddle until that leg is straight.

In Peveler et al., 2005, that heel setting put 70% of 19 trained cyclists inside the knee range, a better rate than either inseam formula. Keep the bike upright on its kickstand, open the seat clamp, set the height, and close the clamp firmly before the first ride.

The wider saddle VTUVIA shows in its "Upgraded Wide Saddle" block, which it says current stock features; the studio photographs in its gallery show a black saddle.

How we computed fit

One rule builds the saddle table: saddle top to pedal axle equals 109% of your inseam. Take a 5'8" rider with the survey's median inseam for that height, 32.6 inches: the saddle belongs 35.6 inches above the pedal axle, or 34.6 at 106% and 36.0 at 110.4%.

The LeMond method, 88.3% of inseam measured from the crank axle instead, gives 28.8 inches for the same rider; adding a crank's length to it lands near the pedal-axle figure, the point the saddle table measures from.

VTUVIA's side photograph could be scaled to its published lengths only in part: at the 45-inch wheelbase, the overall length and the chainstay came within 3.5%, and the step-through height, the tire, the head tube and the top tube did not. With two matches, where three are needed before a photograph is used, no saddle position, lean or hand load is measured from it (Limitations).

The motor: 750 W in the rear hub, 1,200 W at peak

VTUVIA's specification prints "48V 750W（PEAK 1200W） Rear Brushless Motor" beside 85 N·m and a 48 V 25 A controller; 48 volts at 25 amps comes to 1,200 W, the peak VTUVIA prints. The 1,200 W is the most that controller can pass at 48 volts; the 750 W is the motor's rating, and it is the number the definitions in the class section are measured against.

The motor sits in the rear hub, so it turns the wheel at road speed whichever gear you are in. Our e-bike motor guide sets hub motors against mid-drives, and the gear table shows what your pedaling saves on this one.

Assistance follows a cadence sensor, which VTUVIA's FAQ describes as "designed to provide smooth pedal assist that feels natural and easy to control", and pedal assist is listed as "3 Modes x 5 Levels". The thumb throttle moves the bike with no pedaling.

On speed, VTUVIA's page carries two sentences. Its class note reads that the default maximum speed "is set to 20 MPH, which can be adjusted according to user preferences", and its FAQ reads: "The SF20H has a factory-limited top speed of 20 mph, but it can reach up to 28 mph under full power." The class section sets the 20 mph default beside the law.

The battery: 48 V × 14 Ah = 672 Wh, certified to UL 2271

The pack holds 672 watt-hours, 48 volts times 14 amp-hours, and that one store of energy runs the motor, the headlight, the brake light and the color display. VTUVIA's specifications page weighs the pack at 9.35 lb, and its product table names LG cells and UL 2271.

The pack in VTUVIA's close-up, its label reading "UL2271 Certified", with the key lock at the top; the frame behind it is faded out in VTUVIA's image.

The pack sits behind the seat post, lifts out of the frame and locks with a key. The key matters: a battery lock assembly for the SF20 family is $29.99 on our shelf, and we will check it against your bike before you order.

The charger delivers about 109 W. At VTUVIA's 54.6 V and 2 A, 672 Wh takes about 6.2 hours before any charger losses, between the 5 to 6 hours on the specifications page and the "About 7 Hours" on the product page; plan on the longer figure.

A spare or bigger pack comes from our shelf: VTUVIA's 48 V battery, which our listing names for the SF20 and the SF20H among others, in 15 Ah ($499), 17.5 Ah ($699) and 20 Ah ($799) versions. Yours shipped as the 14 Ah pack, so email us a photo of its label and we will confirm which one fits before you pay.

How far the SF20H goes: range by speed, hill, load and cold

A 180 lb rider on level pavement gets about 37 miles from a full pack at 15 mph on the throttle, about 26 at 20 mph, and about 56 at 15 mph pedaling easily. Climbing a steady 8% grade at 10 mph on the throttle, the same charge runs out after about 9 miles.

Your own figure takes three steps:

1. Find your cruising speed and your pedaling effort in the speed tables.
2. Count your climbing: on the throttle at 10 mph, every 1,000 feet of gain uses 136 Wh on a 4% grade and 161 Wh on a 10% grade, and pedaling trims both (the hills table).
3. Adjust for what you carry and the air temperature, and budget on 75% of the pack.

Every number here models a single steady ride from four inputs: VTUVIA's specifications, the published figures of a comparable hub motor, ten fat tires measured on a drum and a cycling-power model checked against riding on an open road. The formula subsection works one ride through and sets a reviewer's measured day beside the model.

Does speed cut the SF20H's range? Miles at each speed

Yes, by about half: for a 180 lb rider on the flat, a full charge lasts 51 miles at 10 mph on the throttle and 26 at 20 mph. Between 15 and 20 mph alone it falls from 37 miles to 26.

Air resistance is the reason: the power it takes grows with the cube of speed, and (20 ÷ 15)³ comes to about 2.37, so holding 20 mph against the air takes well over twice the power of 15.

Throttle only, the rear hub motor, level pavement, a 180 lb rider, 77 °F air. The table stops at 20 mph, the default maximum VTUVIA sets. The last column keeps back a quarter of the pack: on one measured pedelec, researchers at KIT found 75% of the pack in use during a standard range test (Schmitt, Decker and Doppelbauer, 2019).

Pedal easily at 15 mph, about 75 W from your legs, and the 37 miles become 56. The tables call 75 W easy pedaling and 150 W steady pedaling. To place yourself, picture the SF20H on the flat with the motor off: 75 W would hold about 9.1 mph and 150 W about 13.2, and the column matching the speed you could keep up unaided is yours.

Miles from a full pack on level ground with a 180 lb rider. At 15 mph the pack gives up 18.1 Wh a mile on the throttle alone and 12.1 with easy pedaling. Trust the 104-mile figure least: there your legs supply more power than the motor, and the model's motor losses at light load have no published check (Limitations, item 5).

The assist level you choose does not change these figures: the pack pays for the speed you hold and the share of the work your legs leave to the motor. VTUVIA's own note on range lists "the rider's weight, pedal assist level, throttle use, terrain, speed, weather, and towing weight" as the factors that move it.

Do gears or pedaling save battery on the SF20H?

Pedaling saves battery; shifting on its own does not. The SF20H's motor sits in the rear hub, outside the gears, so a shift moves your cadence but not the motor's work, and at a set speed and grade only more effort from you lowers the pack's draw:

Watt-hours drawn from the pack each mile by a 180 lb rider in 77 °F air, with 75 W from your legs in the easy column and 150 W in the steady one.

The Shimano derailleur at the rear hub in VTUVIA's photograph, with the 14–28T seven-speed cassette behind it.

Use the seven gears to keep your legs turning at a pace they like, and shift down before you stop or meet a hill so the next start comes easy. The hills table shows how much your own effort adds on a grade.

How much battery does a climb cost?

Between 136 and 161 Wh for every 1,000 feet you gain, on the throttle at 10 mph up grades of 4 to 10%; easy pedaling brings that down to 126 to 147. Raising you and the bike accounts for 94 Wh of it at the rear wheel, and the motor and the pack lose the rest.

Rider and bike together, 180 lb plus 70, come to 250 lb. On an 8% grade at 10 mph on the throttle, 1,000 feet of gain costs 150 Wh, so a full 672 Wh pack tops out at about 4,500 feet of climbing with nothing left for flat riding. Coming back down earns nothing in the model, so a budget built from these figures errs toward caution.

All figures hold 10 mph with 180 lb aboard. The watt-hours and throttle miles assume no pedaling, and the easy-pedaling miles add 75 W from you. Top steady speed is the model's fastest throttle-only pace on each grade, held inside VTUVIA's 750 W rating and 1,200 W peak and capped at the 20 mph default.

On grades past 12%, pedal. At 15%, the model's motor, held to its 1,200 W peak, slows to about 8.5 mph on the throttle alone; add 75 W of easy pedaling and 10 mph holds.

Hills and flat miles add together. A ride of 15 level miles at 15 mph on the throttle takes about 271 Wh; add a 500-foot climb at 8% and it takes about 75 Wh more, 347 Wh in all, or 52% of the pack. Wind and traffic stops come on top, since the model holds one steady speed for every mile.

How much does a heavier rider or a passenger cost?

Load costs you some range on the flat and far more on a hill. Added pounds make the tires drag harder and add to the lifting on every grade, while the air resistance stays the same, so the gap between a light load and a heavy one widens as the road tilts up. To the battery, a passenger on the rear seat weighs the same as cargo.

The rider plus everything carried, a passenger included; the bike's 70 lb, the heavier of VTUVIA's two weights, is added in every row. Throttle only. The 330 lb row is VTUVIA's total capacity for the SF20H.

Carry a 150 lb passenger behind a 180 lb rider, 330 lb in all and the SF20H's limit, and the level 15 mph throttle ride shrinks from 37 miles to 30 while the 8% climb at 10 mph falls from 9 miles to 5.

Two riders at the full 330 lb lose about a fifth of the flat range and close to half of the climbing range, because every extra pound has to be lifted on a grade (the hills section).

How much range does the cold take?

Each drop in temperature costs miles. The 15 mph throttle ride worth 37 miles at 77 °F comes to about 30 at 32 °F, and to about 27 at 14 °F.

Level ground, 180 lb aboard. Each row's central figure is built from McMaster University's tests of an LG HG2 cell, run at 77, 50, 32 and 14 °F and recomputed here for a 0.5C discharge; the rows in between are interpolated, and the cells are taken to be at the temperature of the air. VTUVIA names LG cells, and the HG2 stands in as one LG cell with published cold data.

The bracketed ranges show the spread in published cell data. The bottom of each is the lowest capacity a Samsung data sheet gives at that temperature for a discharge of one to four hours (25R and 30Q at 32 °F, 35E at 14 °F); the top is the highest energy Casado and colleagues measured in 2025, discharging more slowly.

Freezing air stacks three losses. At 32 °F the cells return about 89% of the energy they give at 77 °F (80 to 93%, depending on the source), and the air itself is about 9% denser under the gas law used in the U.S. Standard Atmosphere, so there is more of it to shove aside.

The third loss is in the tires, which roll harder when cold: the model adds 0.5% to rolling resistance for each °F under 77 °F (0.9% per °C), a rate between Rothhämel's fit for a 42 mm tire and Bicycle Rolling Resistance's average for road tires, and holds the 41 °F figure for anything colder. In winter, store and charge the pack indoors between rides.

Do the fat tires cost range, and does posture matter?

Yes, and the tire matters more than your posture. Rolling at 18 mph under a 94 lb load at 12 psi, ten 26 × 4.00 fat tires on Bicycle Rolling Resistance's drum took from 23.2 to 42.1 W each.

The SF20H's 20 × 4.0 tire has no drum reading, so the model uses the middle of the ten, a coefficient of 0.0105, with the heaviest-rolling tire on the drum as the slow case.

Level ground, 180 lb aboard, a full pack. The heaviest-rolling tire is a Kenda Juggernaut Pro, whose own test page lists its coefficient as 0.01262.

A 20 × 4.0 tire on the front wheel, in VTUVIA's photograph; VTUVIA's text says the tires suit "sand, snow, and rough trails".

For pressure, read the tire's own sidewall and stay inside its range; the drum figures above were measured at 12 psi. How you sit counts for more as speed rises. The model uses the 0.640 m² drag area Tengattini and Bigazzi measured for 37 upright cruiser riders; for 90 everyday mountain-bike riders they measured 0.603 m², and riding like them would take the 20 mph throttle ride from 26 miles to 28.

VTUVIA's 70, 40 and 52 miles, as steady rides

VTUVIA's 70, 40 and 52 miles each correspond to a steady ride the model can name. The product page prints 70 miles on pedal assist and 40 on the throttle only, and the specifications page gives 52 miles.

The level-ground speed that would empty all 672 Wh over exactly VTUVIA's distance, for a 180 lb rider; 70 miles means 9.6 Wh a mile, 40 miles 16.8 and 52 miles 12.9.

A dash means no steady speed from 5 to 20 mph matches that figure with that effort: on the throttle alone the model draws more than 9.6 Wh a mile at every speed, and at 150 W of pedaling it draws less than 16.8 at every speed up to 20 mph.

On that reading, VTUVIA's 70 miles on pedal assist matches easy pedaling near 13.4 mph, and its 40 on the throttle matches a steady 13.9 mph. Ride a little faster, at 15 mph, and the model's throttle figure of 37 miles comes in just under that 40.

For planning, count on 75% of the miles in your row. The quarter set aside is the share of the pack the KIT measurement found left unused, so at 15 mph on the throttle the planning figure is 28 miles of the full 37.

The range formula, worked through

Every figure above starts from one equation. Martin and colleagues' 1998 equation, checked against power measured on an open road, turns speed, weight, slope and air into the watts the rear wheel must deliver to hold a steady pace in still air:

P = v × [ m × g × (Crr × cos θ + sin θ) + ½ × ρ × CdA × v² ], where P is the power at the rear wheel.

In the equation, v stands for road speed; m for the combined mass of rider, cargo and bike; g for gravity; θ for the angle of the slope; Crr for the tires' rolling-resistance coefficient, where 0.0105 means the tires hold you back with a force of 1.05% of the weight they carry; ρ for the density of the air; and CdA for the drag area, the size of the hole you punch through the air.

Four stages lie between the wheel and the pack:

1. Your legs: 97.7% of what you put into the pedals reaches the rear wheel through the chain (the chain efficiency Martin and colleagues use), and the motor supplies the rest.
2. The hub motor carries the motor's whole share.
3. The motor follows a comparable motor's published figures: Bafang's RM G062.750.D/DC hub, which the 2021 OEM workbook lists at 400 rpm unloaded, 350 rpm at its rating, 48 V, 85 N·m and an efficiency of "≥ 80" percent. The model takes 80% at the rated point, lets efficiency fall as the load lightens, caps torque at VTUVIA's 85 N·m and the pack's draw at the 1,200 W peak.
4. The pack turns a small share of its energy into heat, at the rate Arango, Lopez and Ceren measured on a 48 V pack.

From there, Wh per mile = pack watts ÷ mph, and range = 672 Wh × the fraction of energy the cells still give at that temperature ÷ Wh per mile.

The 37-mile ride, worked step by step: 180 lb aboard, 15 mph, level pavement, throttle only. Holding that pace takes 192.8 W at the rear wheel, 78.6 W against the tires and 114.2 W against the air.

At 15 mph the 23-inch rear wheel turns 219 times a minute. Built from Bafang's published figures, the motor model (a torque constant of 1.146 N·m per amp, a 0.307 Ω winding, 1.67 A drawn at no load) makes the 8.4 N·m that speed needs from 9.0 A; at 74% efficiency, that is 261.8 W into the motor.

Add the pack's internal losses and the cells must give up 271.5 W: at 15 mph that is 18.10 Wh for every mile, and 672 Wh divided by 18.10 gives about 37.1 miles, or 27.8 if a quarter of the pack stays unused.

Three published figures, reproduced first. The model returns each before it computes anything:

The first two come from the model's self-test on Appendix I of Martin and colleagues (8.36 m/s, a 90 kg system, a 0.3% grade) and on the RM G062.750.D/DC's rated point in Bafang's workbook. The third sets Bafang's 400 rpm on VTUVIA's 23-inch wheel beside VTUVIA's FAQ.

A reviewer's measured day, on the earlier pack. No SF20H ride to an empty pack with its conditions stated turned up among the nine SF20 and SF20H videos read for this review. The nearest is Electric Revolution's August 9, 2022 test of the earlier SF20 with its 48 V 13 Ah pack, 624 Wh, by a 5'11" rider whose weight the video does not give.

On "flat terrain not a lot of stop and go just very easy riding at 20 miles per hour", he covered 21.16 miles and 790 feet of climbing, stopped with two of the display's battery bars left, and estimated 24 to 25 miles for the whole pack. On that 624 Wh pack, the model's steady 20 mph throttle ride comes to about 25 miles.

His second run, "harder riding and a lot more stop and go", logged 23.73 miles with 4,275 feet of climbing. On the throttle alone at 10 mph, the model spends 580 to 687 Wh on that much climbing, 93 to 110% of the 624 Wh pack before any level miles, so the rider's own effort that day, which the video does not measure, carried a share the model cannot place.

Treat both runs as floors: neither is the SF20H, and neither gives the rider's weight.

Brakes, display and lights

VTUVIA lists "Dual LOGAN Hydraulic Disc Brakes" on "180mm Martensitic Stainless Steel" rotors, and describes them as delivering "strong and responsive braking power". Hydraulic pads for the UL SF20H were $25 a pair in our VTUVIA parts collection on September 28, 2026.

The right-hand lever of the LOGAN hydraulic brakes and the stitched grip, in VTUVIA's photograph.

The display is a 3.5-inch full-color screen with an adjustable angle, which VTUVIA says shows "speed, battery level, distance, and pedal assist mode".

The display in VTUVIA's photograph: speed in the center, the odometer below it and the assist level at the lower right.

The headlight is a "48V 5W 130 Lux LED Headlight", paired with a brake light at the rear. VTUVIA's text calls it "a powerful LED headlight to enhance visibility and safety during night rides"; a bell or horn is listed as "Not Included", so add one if your state or your paths ask for it.

The LED headlight on its bracket above the front fender; VTUVIA rates it at 5 W and 130 lux.

Fork, tires, gears and water

VTUVIA fits a suspension fork, which its page calls a "Hydraulic Front Fork" that provides "superior shock absorption". The tires are 20 × 4.0, which VTUVIA's specifications page gives as 60 TPI fat tires.

The front suspension fork in VTUVIA's photograph, lettered VTUVIA on the lower leg, with the headlight above the fender.

The drivetrain is Shimano throughout its gear change: a TX50 shifter, a TY300D derailleur and a TZ5007 cassette, seven speeds from 14 to 28 teeth. A 20 × 4.0 inner tube ($39) and a 20-inch reflective fat tire ($79) were in our VTUVIA parts collection on September 28, 2026.

On water, VTUVIA's own line sets the limits. Its class note says the SF20H "is built to the IP67-rated standard, making it suitable for riding through creeks, mud, and snow. However, please avoid prolonged or intentional immersion in water. Additionally, the bike is not designed to withstand high-pressure sprays, so refrain from using pressure washers or sprayers for cleaning."

Clean it with a damp cloth, and keep pressure washers and sprayers away from it.

Folding, weight and the passenger seat

VTUVIA prints two weights for the SF20H: 60 lb "include rear racks and fenders" on the product page, and 70 lb "battery included" on the specifications page. Add the 9.35 lb pack to the 60 lb and the sum, 69.35 lb, sits within a pound of the 70; this page plans on the 70 lb.

VTUVIA's fold panel pairs "10 Sec" with "Quick Fold", "Tool-Free" with "Easy Operation" and "Dual Lock" with "Safety Hinge", and its text says the bike "folds down to fit into your car trunk, under your desk, or inside your RV".

Its two folded sizes differ: 39.3 × 29.92 × 18.9 inches in the product page's text, and 28.7 × 33.8 × 12.2 inches on the size chart. Measure your trunk against the larger of the two before you rely on the smaller.

The leather-covered rear seat on the welded rack, in VTUVIA's photograph; VTUVIA says all new orders ship with it, where some of its photographs still show a wood panel.

The 330 lb is the whole load: you, a passenger, a child seat and everything in the bags. VTUVIA's FAQ says the welded rack "supports up to 330 lbs, making it strong enough to safely mount a child seat", and its feature block adds that the rear foot pegs make "the SF20H a great choice for carrying a second rider".

One of the rear foot pegs VTUVIA fits for a passenger, in VTUVIA's photograph.

Your state's passenger rule comes with the seat. California, where § 312.5(a) defines an electric bicycle as "a bicycle equipped with fully operable pedals", lets a passenger ride only "upon or astride a separate seat attached thereto" under § 21204(b).

The same subsection adds that a passenger "four years of age or younger, or weighs 40 pounds or less" needs a seat with "adequate provision for retaining the passenger in place and for protecting the passenger from the moving parts of the bicycle". On September 28, 2026, VTUVIA's page listed a rack-mounted "SF20H Child Seat Kit" at $209, and VTUVIA's store record showed it sold out; email us and we will tell you when it is back.

The Mercer fit test

Every bike we review faces the same seven people, the Mercers of Fair Oaks, California, so each one answers the same fit questions (meet the Mercers). Each verdict below rests on a figure VTUVIA publishes (the 5'3" to 6'2" window, the 28 to 34 inch inseam, the 16-inch step-through, the 330 lb capacity), on the fit tables, or on the California code sections named in the row.

Ruth, Maya and Dana sit inside both of VTUVIA's windows, and the step-through clears Ruth, the shortest of the six measured, by 13.7 inches or more. From 5'10" up, the inseam decides: Frank, Cole and Jack should measure theirs against VTUVIA's 34 inches before ordering.

A helmeted rider astride a Black SF20H on a coastal bluff, in VTUVIA's photograph, with VTUVIA's caption drawn on it. The basket is VTUVIA's $89 front basket, sold separately, and the wood panel on the rack is the earlier top VTUVIA says new orders replace with the leather seat.

Is it UL certified?

VTUVIA says both the pack and the system are: its specification lists "UL2271(Battery） UL2849(E-bike System)", and the pack in its close-up carries a label reading "UL2271 Certified". In a December 2024 post, VTUVIA wrote that models "like the SF20H, SN100, and CMB" are "certified by SGS TO UL2849", and its FAQ answer adds: "You can search for this certification on the SGS official website."

The two standards cover different ground. UL 2849 is titled "Electrical Systems for eBikes" and names "the drive unit, battery, battery management system (BMS), interconnecting wiring, and power inlet" as the minimum it covers; UL 2271 is "Batteries for Use In Light Electric Vehicle (LEV) Applications". If a landlord, a building or an insurer asks for proof, email us, and we will request the certificate from VTUVIA in writing.

Has it been recalled?

No. On September 28, 2026, the Consumer Product Safety Commission's recall data was searched in its title, product-name and manufacturer fields for VTUVIA, Vtuvia and vtuviaebike, and every field of a 623-record corpus of bicycle, e-bike, battery and scooter recalls was read for the brand and for the model code SF20.

No record names VTUVIA, and none carries the SF20 or SF20H code. The same search was first run on brands with known recalls, to prove it could find them: Ancheer returned 1, Specialized 54 and Trek 24.

The class question: 750 W rated, 20 mph as delivered

Settle this before ordering. VTUVIA publishes a 750 W rating, a 1,200 W peak, a thumb throttle, Class 2 and a 20 mph default for the SF20H, and an e-bike definition tests the motor and the speed separately.

The federal consumer-product definition, 15 U.S.C. § 2085(b), describes a low-speed electric bicycle as one with "fully operable pedals and an electric motor of less than 750 watts (1 h.p.)", whose top speed on motor power alone with a 170-pound rider "is less than 20 mph".

California's line is in Vehicle Code § 312.5(a), which on September 28, 2026 defined an electric bicycle as "a bicycle equipped with fully operable pedals and an electric motor that does not exceed 750 watts of power".

At a 750 W rating the two texts give opposite answers. A motor rated at exactly 750 W is not "less than 750 watts", yet it does not "exceed 750 watts" either. Neither statute says which figure, rated or peak, is the one to measure, and VTUVIA publishes both: 750 W rated, 1,200 W at peak.

Both columns as they read on September 28, 2026, in § 2085(b), § 312.5(a) and on VTUVIA's SF20H page.

The federal definition decides how the Consumer Product Safety Commission treats a product; where and how you may ride it is your state's decision, and state definitions word the watt line in several ways. Our 50-state e-bike law atlas gives each state's own definition, and our California e-bike law page goes deeper on the state quoted here.

Trails and public land: who decides

Off the road, the owner or the land agency decides where the SF20H may go. The Bureau of Land Management and the National Park Service both define an e-bike by a motor of "not more than 750 watts", and the Forest Service treats e-bikes as motor vehicles.

Bureau of Land Management rules at 43 CFR 8340.0-5(j) define an e-bike as a cycle with "an electric motor of not more than 750 watts (1 h.p.)" in one of three classes, the second being a motor "that may be used exclusively to propel the bicycle" and stops assisting at 20 mph. A 750 W rating is inside "not more than 750 watts".

That definition does not open every trail. Paragraph (a)(5) of the same section keeps an e-bike out of the off-road vehicle definition only on "roads and trails upon which mechanized, non-motorized use is allowed", only "in a manner where the motor is not exclusively propelling the e-bike for an extended period of time", and only where the authorized officer "has expressly determined" that e-bikes should be treated the same as non-motorized bicycles.

National Forests are stricter. The Forest Service's notice at 87 FR 41278 says its final directives, issued March 31, 2022, provide for "managing all classes of e-bikes as motor vehicles". Once a district's roads and trails are designated on a motor vehicle use map, 36 CFR 261.13 prohibits anyone from possessing or operating a motor vehicle there "other than in accordance with those designations".

The land manager's own document settles each row; VTUVIA's specification settles none of them.

Under 43 CFR 8340.0-7, breaking the BLM's off-road vehicle rules in subparts 8341 and 8343 can cost "a fine of not more than $1,000", imprisonment for up to 12 months, or both. For each federal agency in turn, read our public-land e-bike guide.

Green flags / Red flags

Green flags

• A padded passenger seat and rear foot pegs on a welded rack, under one 330 lb capacity printed the same in VTUVIA's specification, highlight strip and FAQ.
• It folds in a fold VTUVIA times at "10 Sec", tool-free, on a dual-lock hinge.
• UL 2271 on the pack and UL 2849 on the system, in VTUVIA's specification, and by SGS in VTUVIA's words.
• A 16-inch step-through: 95 of 100 riders at 5'3" clear it by 12.7 inches or more.
• Hydraulic brakes on 180 mm rotors, a suspension fork and seven Shimano gears.
• 37 miles at 15 mph on the throttle for a 180 lb rider on the flat, or 56 pedaling lightly.
• $1,299, VTUVIA's own price, with the UL SF20H's pads ($25), charger ($99) and controller ($139) on our shelf.

Red flags

Each is about fit: who the SF20H is wrong for, and what to do instead.

• Wrong if $1,299 is past your budget and the fold matters more than a passenger seat. The Samebike LO26 Plus folds for $999 on our store, on a 1000 W motor, so read its class section against your state first.
• Wrong for a rider under 5'3". VTUVIA's window starts there; the Eunorau META20 folds too, and Eunorau lists riders from 5'1". The VTUVIA SX20 folds as well, is sized by VTUVIA from 5'0", and steps through at 13.8 or 15.4 inches.
• Wrong for long legs past a 34-inch inseam if you want the saddle where the formula puts it; email us your height and inseam, and we will suggest a taller frame we sell.
• Wrong if you want assistance that follows how hard you push. The SF20H has a cadence sensor; the Eunorau META20 folds with a torque sensor, and its review explains how that rides.
• Wrong if your rides run long and fast on the throttle alone. At 20 mph a charge computes to 26 miles for a 180 lb rider; the META20 review covers a folder that takes a second pack.
• Wrong if two adults and their bags weigh more than 330 lb together. Send us the total, and we will match a cargo bike we sell rated for it.
• Wrong if it must go up stairs every day. At 60 to 70 lb it is a two-handed lift; tell us about the stairs or the car rack, and we will point you to a lighter bike we sell.
• Wrong where you want the bike inside a "less than 750 watts" definition. Its motor carries a 750 W rating; the META20 is rated at 500 W, and the law atlas gives each state's word.
• Wrong for trails that admit Class 1 bikes alone. The throttle rules it out there; send us the trail's name, or read our public-land guide for the agency to ask.

Buy it if / Buy something else if

Buy it if your bike has to fold into a trunk, an RV bay or a closet and still carry a second person, a child seat or a week of groceries when it comes out: 672 Wh computed at 37 miles at 15 mph on the throttle for a 180 lb rider, with a 16-inch step-through, hydraulic brakes and a certified pack.

It also asks for a rider inside VTUVIA's 5'3" to 6'2" window with an inseam up to 34 inches, a total load at or under 330 lb, and a place to charge for up to 7 hours.

For $1,299 you get a 750 W rear hub motor with a 1,200 W peak, 85 N·m, a removable 672 Wh LG pack, a suspension fork, LOGAN hydraulic brakes, seven Shimano gears, a color display, a headlight, fenders and a welded rack with a leather rear seat. Shop Pay on our listing turns that into 12 payments of $117.25 at 15% APR, $1,407.00 over the year.

On VTUVIA's page, SF20H owners had left 167 reviews by September 28, 2026, averaging 4.9 of 5, and 151 of them at five stars.

Buy something else if you are under 5'3", want a torque sensor, or want a motor rated under 750 W: the Eunorau META20 folds with a torque sensor and a 500 W motor. If rider, passenger and bags together come to more than 330 lb, email us and we will match a cargo bike to the load.

Reviews of other machines we sell are gathered on our e-bike reviews hub, and our 750 W buying guide sets bikes of this rating side by side.

Before you buy: the checklist

Run through these ten before spending $1,299; where the SF20H may ride comes first.

1. Look up where you are allowed to ride: your state's e-bike definition, then the rules of whoever manages the trail.
2. Set the bike against that rule: VTUVIA rates the motor at 750 W and ships it as Class 2 at 20 mph.
3. Measure your inseam and find your row in the fit tables, against VTUVIA's 28 to 34 inches.
4. Check your height against VTUVIA's 5'3" to 6'2" window.
5. Add up rider, passenger and cargo and keep the total at or under 330 lb.
6. Check your state's passenger rule before anyone rides the rear seat, and plan a helmet for every rider under 18 in California.
7. Measure the trunk or the RV bay against the larger folded size, 39.3 × 29.92 × 18.9 inches.
8. Plan the lift for a 60 to 70 lb bike.
9. Find your ride in the range tables, add the climbing, and keep a quarter of the pack in reserve.
10. Choose a charging spot you can check on, with up to 7 hours to spare on the 2 A charger.

Buying it from us

Why buy the SF20H from Redtail

Our listing priced the SF20H at $1,299 in White and Black on September 28, 2026, with $1,399 as the regular price, the same as VTUVIA's page that day.

A change of mind works another way: a bike still in its sealed factory packaging comes back if you ask within 72 hours of delivery, less a 15% restocking fee and the return shipping, and a canceled order costs a 3% transaction fee. Ask us about the fit, the range and the passenger rule before you order; those answers cost nothing.

Frequently asked questions

How far can the VTUVIA SF20H go on one charge?

VTUVIA's figures are 70 miles on pedal assist and 40 on the throttle only (its specification), and 52 miles on its specifications page. For a 180 lb rider on level pavement the model gives about 37 miles at 15 mph on the throttle, 26 at 20 mph and 56 at 15 mph pedaling easily, and each 1,000 feet climbed at 10 mph on the throttle costs 136 to 161 Wh more (the range tables).

What is the top speed of the VTUVIA SF20H?

VTUVIA sets it to 20 mph by default, as a Class 2 bike, and its FAQ adds: "The SF20H has a factory-limited top speed of 20 mph, but it can reach up to 28 mph under full power." In the model the comparable motor turns at 27.4 mph unloaded on the 23-inch wheel, and the class section sets the 20 mph default beside the law.

Is the VTUVIA SF20H street legal, and which class is it?

VTUVIA ships it as Class 2: a throttle and pedal assist that stop at 20 mph. Its 750 W rating meets California's "does not exceed 750 watts" and sits on, not under, the federal "less than 750 watts"; your state's own wording and rules decide where you ride (the class section).

Does the SF20H have a torque sensor or a cadence sensor?

A cadence sensor: VTUVIA's FAQ says the SF20H "uses a cadence sensor, designed to provide smooth pedal assist that feels natural and easy to control". For a folder with a torque sensor, our META20 review covers one we sell.

Can the SF20H carry a passenger or a child seat?

VTUVIA builds it for one: a leather-covered rear seat and foot pegs on a welded rack, with a 330 lb total capacity, and a rack-mounted SF20H Child Seat Kit listed at $209 on its page. Your state sets the passenger rule; California's § 21204(b) asks for "a separate seat attached thereto", and a retaining seat for a passenger four or younger or 40 pounds or less (the passenger section).

How much weight can the VTUVIA SF20H carry?

330 lb in total, the same figure in VTUVIA's specification, highlight strip and FAQ, and it covers the rider, any passenger and everything carried. At that full load the 15 mph throttle ride on the flat comes to about 30 miles (the weight table).

How much does the SF20H weigh, and how small does it fold?

VTUVIA prints 60 lb "include rear racks and fenders" and 70 lb "battery included", with the pack at 9.35 lb. Folded, VTUVIA gives 39.3 × 29.92 × 18.9 inches in the product page's text and 28.7 × 33.8 × 12.2 inches on its size chart, so measure your space against the larger (the folding section).

Will the SF20H fit in a car trunk or an RV?

VTUVIA says it "folds down to fit into your car trunk, under your desk, or inside your RV", in a fold its page times at "10 Sec" with no tools. Measure the space against the larger of VTUVIA's two folded sizes, 39.3 × 29.92 × 18.9 inches, and plan a two-handed lift for 60 to 70 lb.

What height rider does the VTUVIA SF20H fit?

VTUVIA sizes it for 5'3" to 6'2" with a 28 to 34 inch inseam. A 5'8" rider with a 32.6-inch inseam, the median at that height in the US Army's ANSUR II survey, sets the saddle top 35.6 inches above the pedal axle, and at every height in the window 95 of 100 riders clear the 16-inch step-through by 12.7 inches or more (the fit section).

How long does the SF20H battery take to charge?

VTUVIA gives "About 7 Hours" on its product page and 5 to 6 hours on its specifications page. Its 54.6 V, 2 A charger delivers about 109 W, so the 672 Wh pack takes about 6.2 hours before charger losses; plan on 7 (the battery section).

Can I buy a spare or replacement battery for the SF20H?

Yes. VTUVIA's 48 V battery, which our listing names for the SF20, SF20H, SK20, SK200, Kangaroo and FT2, comes in 15 Ah ($499), 17.5 Ah ($699) and 20 Ah ($799) versions. The SF20H ships with a 14 Ah LG pack that VTUVIA's specification lists under UL 2271, so send us a photo of your pack's label and we will confirm which one fits before you pay.

What brake pads does the VTUVIA SF20H use?

Hydraulic pads: VTUVIA's fitment on our pad listing names "SF20H-UL" on the $25 hydraulic pair and "Old-SF20H" on the $19 mechanical pair. The SF20H sold today has LOGAN hydraulic brakes, so the $25 pair is the one.

Is the SF20H the same bike as the SF20 or the SF20 Pro?

The SF20H grew out of the SF20. VTUVIA's 2022 post calls the SF20-H "a new upgraded version of our VTUVIA SF20", also named the SF20 Pro, with a welded rear rack, a 13 Ah pack and mechanical brakes. Its April 2024 post moved the SF20H to hydraulic brakes, a color display, a 14 Ah LG pack and UL certification, the build sold today.

Is the VTUVIA SF20H UL certified?

VTUVIA's specification lists "UL2271(Battery） UL2849(E-bike System)", the pack's label reads "UL2271 Certified", and VTUVIA writes that the SF20H is "certified by SGS TO UL2849". If you need the certificate for a building or an insurer, we will request it from VTUVIA in writing (the UL section).

Can you ride the SF20H in the rain, and can you hose it down?

VTUVIA says it is "built to the IP67-rated standard, making it suitable for riding through creeks, mud, and snow", and asks you to "avoid prolonged or intentional immersion in water". It also says the bike "is not designed to withstand high-pressure sprays", so clean it with a damp cloth and keep pressure washers and sprayers away.

Can I ride the SF20H on BLM land or national forest trails?

Only where the land manager allows e-bikes. The BLM's definition reads "not more than 750 watts", which takes in a 750 W motor, but only on routes open to bicycles, and only where the authorized officer "has expressly determined" that e-bikes are treated as non-motorized bicycles; the Forest Service manages "all classes of e-bikes as motor vehicles" (the trails section).

Is the SF20H good for seniors?

VTUVIA titles its page "Senior-Friendly" and its FAQ credits the "low step-through frame and foldable design". The numbers behind that: a 16-inch step-through that 95 of 100 riders at 5'3" clear by 12.7 inches or more, a throttle for starts, and hydraulic brakes; the bike weighs 60 to 70 lb, so plan the lifting (the fit section).

What warranty does the VTUVIA SF20H have?

Order from us and a fault is ours to handle under our policies: you send photos and the order number, we open the claim and stay with it, and our refund policy says "we coordinate repair or replacement remotely" for a bike that won't power on or charge, shows an error code or has a faulty component. Ask before buying and we will confirm the terms for your order in writing.

Is the VTUVIA SF20H worth it?

At $1,299 on our store on September 28, 2026, against a $1,399 regular price, with free shipping in the contiguous United States, it pairs a folding frame with a passenger seat, a certified 672 Wh pack, hydraulic brakes and a 330 lb capacity. It suits riders from 5'3" to 6'2" who need a bike that packs small and carries two (the verdict).

Can I finance the VTUVIA SF20H?

Yes. Our listing's Shop Pay terms on September 28, 2026 were 12 payments of $117.25 at 15% APR, $1,407.00 altogether, with 3- and 6-payment plans at the same APR. The plan is the same for White and Black, both $1,299.

Limitations of this review

Twenty-four things this review cannot settle, set out so you can weigh them.

1. We sell this bike. Give the red flags the same attention as the green.
2. This review is specification-verified. Its figures come from VTUVIA's published pages, statutes and regulations, our own store record, the published research the range and fit sections cite, or arithmetic on this page.
3. Each range figure describes a steady ride: one speed on one grade, with no wind and no stops. Stops, starts, headwinds and soft ground cost more.
4. Bafang's figures stand in for VTUVIA's motor. VTUVIA gives the rating, the peak, the torque and the controller; the documents read here do not name the motor's maker or its internals. At 82% efficiency instead of Bafang's 80% floor, the model's 15 mph throttle figure rises from 37 miles to 39, and the 20 mph figure from 26 to 28.
5. At light motor load the model has no measured check. Where your legs do more of the work than the motor, as in the steady-pedaling column at 15 mph, the answer rests on motor losses that no published hub-motor map could confirm.
6. The rated-power reading is the model's. If VTUVIA's 750 W sat on a comparable motor rated at 1,000 W, the 15 mph throttle ride would come to 36 miles and the 20 mph ride to 26.
7. The steep rows assume the controller delivers the full 1,200 W that its 48 V and 25 A allow. A controller that delivers less holds a slower speed on a steep grade than the hills table shows.
8. The reviewer's measured day is on the earlier SF20, with a 13 Ah pack, and gives no rider weight; the first run stopped before the pack was empty, and battery bars are not an energy gauge. The video's description links VTUVIA's SF20 page and says "I do receive a small commission" on a sale.
9. Every figure assumes VTUVIA's 672 Wh. The documents read here do not say how much of the pack the battery management releases; the planning column keeps back the quarter researchers at KIT found unused on one measured pedelec.
10. The tire coefficient is the median of ten 26 × 4.00 fat tires at 12 psi, standing in for the 20 × 4.0 tire on the bike, and the tire table brackets it.
11. The cold figures rest on one cell's laboratory data. VTUVIA names LG cells for the SF20H without a cell model, so the central line uses McMaster University's measured LG HG2 cell, bracketed by other published cell data.
12. The wheel is VTUVIA's 23 inches. On VTUVIA's side photograph, scaled from the 45-inch wheelbase, the two tires read 21.2 and 21.7 inches; at 21.46 inches the 15 mph throttle ride barely moves, and the comparable motor's unloaded speed falls from 27.4 mph to 25.5.
13. VTUVIA prints two weights, 60 lb and 70 lb; the page plans on 70, and at 60 the 15 mph throttle ride rises from 37.1 miles to 37.7.
14. VTUVIA publishes two charge times, "About 7 Hours" and 5 to 6 hours; the page prints both and plans on the longer.
15. VTUVIA publishes two folded sizes, 39.3 × 29.92 × 18.9 inches and 28.7 × 33.8 × 12.2 inches; the page prints both and plans on the larger.
16. The UL statements are VTUVIA's. The pages read here link no certificate, so no certificate number is printed.
17. Passenger rules are set state by state. The page quotes California's §§ 21204 and 21212; other states write their own, and your state's code decides who may ride on the rear seat.
18. Trail access is set locally. The land manager's rule decides, it can change, and neighboring systems differ.
19. The recall search covers the CPSC's US database under the names listed; a recall filed under another company name would need that name searched.
20. The seat heights VTUVIA prints are not placed against the formula. Doing so needs the crank length and the crank axle's height above the floor; the saddle table works from the pedal axle instead, which you can find on the bike.
21. The cockpit is not measured. VTUVIA's side photograph matched two of its published lengths within 3.5%, where three are needed, so no grip position, lean angle or hand load is computed; the hands answer is guidance from published studies.
22. The fit figures use the US Army's ANSUR II bodies: 6,068 soldiers aged 17 to 58, measured in 2010 to 2012, who are not the US public, so your own inseam decides your row.
23. The 109% formula is a starting point. In 19 trained cyclists it put 55 to 65% inside the 25-to-35-degree knee range and the heel check 70%, so the knee range and the heel check should set the saddle.
24. Colorways and prices were read on September 28, 2026, and both can change, as can VTUVIA's stock, our parts prices and the Shop Pay terms.

The bottom line

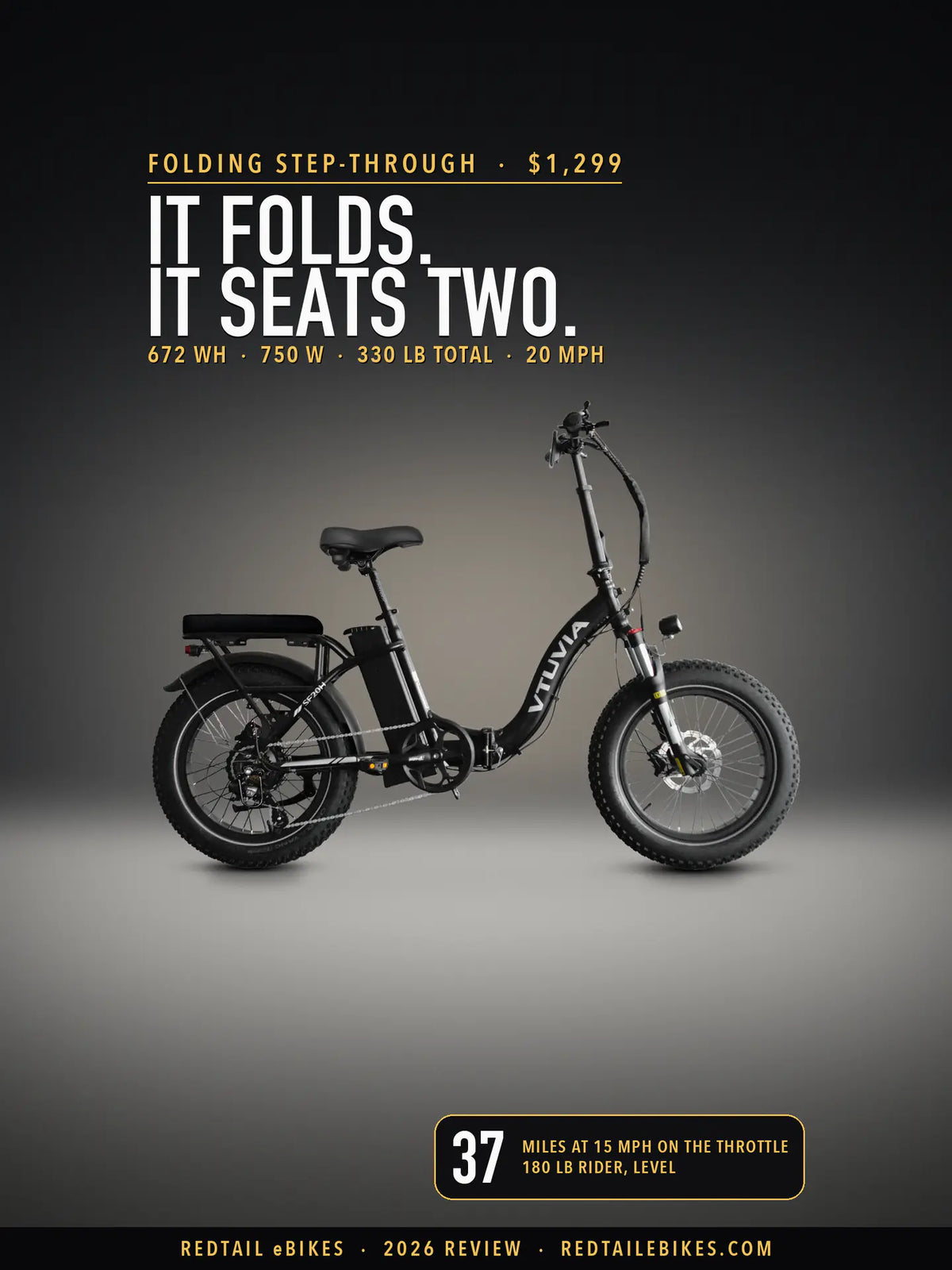

At $1,299, the SF20H puts a 750 W rear hub motor, 85 N·m and a 672 Wh pack certified to UL 2271 on a folding step-through frame, with a welded rack carrying a leather rear seat and foot pegs, a suspension fork, LOGAN hydraulic brakes and seven Shimano gears.

For a 180 lb rider the model computes about 37 flat miles at 15 mph on the throttle, or 56 pedaling lightly; climbing at 10 mph on the throttle adds 136 to 161 Wh per 1,000 feet, and a full 330 lb load cuts the flat figure by about a fifth.

The right owner lives inside VTUVIA's 5'3" to 6'2" window with an inseam up to 34 inches, needs a bike that folds into a car or an RV, and wants to carry a passenger, a child seat or the shopping under 330 lb in total.

Paid over a year with Shop Pay on our listing, it comes to $117.25 a month at 15% APR.

Settle the class question and your state's passenger rule before you pay: VTUVIA ships the SF20H as Class 2 at 20 mph on a 750 W rating. Before you order, name the roads, trails and riders you have in mind, and our reply will quote the rule for each.

Source register

What each document behind this review supports.

T1 is the record itself, read from whoever issued it: a statute, a federal regulation or notice, the maker's own product pages, record, size chart and posts, and our own store record.

T2 is a party's own publication about its product or its measurements: the motor maker's workbook, research groups' and laboratories' published measurements, and a rider's recorded ride.

Expiry conditions

Re-read this page if VTUVIA changes the SF20H's price, specification, motor rating, range figures, default speed, class note, weights, capacity, folded sizes, size chart or FAQ; if VTUVIA publishes a UL certificate for the SF20H; or if the colorways, the price, the parts prices or the Shop Pay terms change on our store.

Re-read it as well if a recall is published naming VTUVIA, or if California amends §§ 312.5, 21204, 21212 or 21213. Verified September 28, 2026.

References

The full bibliographic record for each document cited above, with the date it was retrieved.

1. VTUVIA, SF20H Utility Ebike — product page (Specs table, highlight strip, More Details blocks, class and range notes, FAQs, customer reviews, as rendered for the US market). Retrieved September 28, 2026. https://vtuviaebike.com/products/sf20h-fat-tire-folding-electric-bike-ul-certified-ebike
2. VTUVIA, SF20H Utility Ebike — product record, variant prices, compare-at prices, availability and SKUs. Retrieved September 28, 2026. https://vtuviaebike.com/products/sf20h-fat-tire-folding-electric-bike-ul-certified-ebike.json
3. VTUVIA, SF20H Specifications (motor, battery, ranges, battery weight, recommended height, max load, bike weight, charger, charging time, tires). Retrieved September 28, 2026. https://vtuviaebike.com/pages/sf20h-specifications
4. VTUVIA, SF20H Size Chart (A total length to K handlebar length, folded size, recommended size) and its chart image. Retrieved September 28, 2026. https://vtuviaebike.com/pages/sf20h-size-chart
5. VTUVIA, VTUVIA SF-20H (SF20 Pro) Review By Electrified Reviews (October 20, 2022). Retrieved September 28, 2026. https://vtuviaebike.com/blogs/news/sf20h-sf20-pro-review
6. VTUVIA, Upgraded SF20H Balance Power and Safety (April 18, 2024). Retrieved September 28, 2026. https://vtuviaebike.com/blogs/news/upgraded-sf20h-balance-power-and-safety
7. VTUVIA, Why does UL certification matter? (December 29, 2024). Retrieved September 28, 2026. https://vtuviaebike.com/blogs/news/why-does-ul-certification-matter
8. UL Standards & Engagement, UL 2849, Electrical Systems for eBikes, Scope 1.1–1.3. Retrieved September 28, 2026. https://www.shopulstandards.com/ProductDetail.aspx?productId=UL2849
9. UL Standards & Engagement, UL 2271, Batteries for Use In Light Electric Vehicle (LEV) Applications, Scope. Retrieved September 28, 2026. https://www.shopulstandards.com/ProductDetail.aspx?productId=UL2271
10. US Government Publishing Office, 15 U.S.C. § 2085 — Low-speed electric bicycles, subsection (b). Retrieved September 28, 2026. https://www.govinfo.gov/content/pkg/USCODE-2024-title15/html/USCODE-2024-title15-chap47-sec2085.htm
11. California Legislative Information, California Vehicle Code § 312.5, subdivisions (a) and (a)(2). Retrieved September 28, 2026. https://leginfo.legislature.ca.gov/faces/codes_displaySection.xhtml?lawCode=VEH&sectionNum=312.5.
12. California Legislative Information, California Vehicle Code § 21204, subdivision (b). Retrieved September 28, 2026. https://leginfo.legislature.ca.gov/faces/codes_displaySection.xhtml?lawCode=VEH&sectionNum=21204.
13. California Legislative Information, California Vehicle Code § 21212, subdivision (a). Retrieved September 28, 2026. https://leginfo.legislature.ca.gov/faces/codes_displaySection.xhtml?lawCode=VEH&sectionNum=21212.
14. California Legislative Information, California Vehicle Code § 21213, subdivision (a). Retrieved September 28, 2026. https://leginfo.legislature.ca.gov/faces/codes_displaySection.xhtml?lawCode=VEH&sectionNum=21213.
15. Bureau of Land Management, 43 CFR § 8340.0-5 — Definitions, paragraphs (a)(5) and (j). Retrieved September 28, 2026. https://www.ecfr.gov/current/title-43/subtitle-B/chapter-II/subchapter-H/part-8340/subpart-8340/section-8340.0-5
16. Bureau of Land Management, 43 CFR § 8340.0-7 — Penalties. Retrieved September 28, 2026. https://www.ecfr.gov/current/title-43/subtitle-B/chapter-II/subchapter-H/part-8340/subpart-8340/section-8340.0-7
17. Forest Service, US Department of Agriculture, 36 CFR § 261.13 — Motor vehicle use. Retrieved September 28, 2026. https://www.ecfr.gov/current/title-36/chapter-II/subchapter-B/part-261/subpart-A/section-261.13
18. US Forest Service, Directive Publication Notice, 87 FR 41278 (July 12, 2022), recording the final e-bike directives issued March 31, 2022. Retrieved September 28, 2026. https://www.federalregister.gov/documents/2022/07/12/2022-14777/directive-publication-notice
19. US Consumer Product Safety Commission, Recall data, title, product-name and manufacturer queries for VTUVIA, Vtuvia and vtuviaebike, a full-field read of a 623-record corpus including the model code SF20, and controls Ancheer / Specialized / Trek. Retrieved September 28, 2026. https://www.saferproducts.gov/
20. Redtail eBikes, Shipping policy (processing and transit times, contiguous US scope). Retrieved September 28, 2026. https://redtailebikes.com/policies/shipping-policy
21. Redtail eBikes, Refund policy (48-hour damage window, defect handling, change-of-mind and cancellation terms). Retrieved September 28, 2026. https://redtailebikes.com/policies/refund-policy
22. Redtail eBikes, VTUVIA SF20H storefront record and Shop Pay terms (price, compare-at price, availability by colorway, installment plans). Retrieved September 28, 2026. https://redtailebikes.com/products/vtuvia-sf20h-utility
23. Redtail eBikes, VTUVIA parts and accessories listings: Brake Pads, 2A Charger, 48V 25A Controller for UL SF20H and SN100, 48V Battery for the SF20 family, Battery Lock Assembly, Seatpost for SF20 and SF20H, Fat Tire Inner Tube, Reflective Fat Tire, Aluminum Front Basket, Elastic Cargo Net (fitment, price, availability). Retrieved September 28, 2026. https://redtailebikes.com/collections/vtuvia-parts
24. BAFANG, Workbook OEM 2021, MOTORS table, RM G062.750.D/DC (H550) column: n0, nT, rated voltage, efficiency, maximum torque. Retrieved September 23, 2026. https://www.bafang-e.com/Uploaded/Labels/BAFANG%20Workbook%20OEM%202021.pdf
25. Martin, J. C., Milliken, D. L., Cobb, J. E., McFadden, K. L. and Coggan, A. R., Validation of a Mathematical Model for Road Cycling Power, Journal of Applied Biomechanics 14(3):276–291 (1998), Eq. 14 and Appendix I; doi 10.1123/jab.14.3.276. Retrieved September 23, 2026. https://collections.lib.utah.edu/dl_files/b4/8e/b48ef26086091662c561e673d7bd990d77868437.pdf
26. Bierman, J., Fat Bike Tires Test Results, BicycleRollingResistance.com, rolling resistance at 12 psi, 28.8 km/h, 42.5 kg. Retrieved September 25, 2026. https://www.bicyclerollingresistance.com/fat-bike-reviews
27. Bierman, J., Kenda Juggernaut Pro 2016, BicycleRollingResistance.com, rolling-resistance results. Retrieved September 25, 2026. https://www.bicyclerollingresistance.com/fat-bike-reviews/kenda-juggernaut-pro-2016
28. Bierman, J., CRR at Different Temperatures: Examining Temperature Dependence of Rolling Resistance, BicycleRollingResistance.com. Retrieved September 23, 2026. https://www.bicyclerollingresistance.com/specials/crr-temperature-test
29. Rothhämel, M., On rolling resistance of bicycle tyres with ambient temperature in focus, International Journal of Vehicle Systems Modelling and Testing 17:67–80 (2023); doi 10.1504/IJVSMT.2023.132317. Retrieved September 23, 2026. https://www.inderscience.com/filter.php?aid=132317
30. Tengattini, S. and Bigazzi, A. Y., Physical characteristics and resistance parameters of typical urban cyclists, Journal of Sports Sciences 36(20):2383–2391 (2018), Table 4; doi 10.1080/02640414.2018.1458587. Retrieved September 23, 2026. https://civil-reactlab.sites.olt.ubc.ca/files/2022/11/Tengattini_2018_Physical-characteristics-and-resistance-parameters-of-typical-urban-cyclists.pdf
31. Arango, I., Lopez, C. and Ceren, A., Improving the Autonomy of a Mid-Drive Motor Electric Bicycle Based on System Efficiency Maps and Its Performance, World Electric Vehicle Journal 12(2):59 (2021), Eq. (40); doi 10.3390/wevj12020059. Retrieved September 23, 2026. https://mdpi-res.com/d_attachment/wevj/wevj-12-00059/article_deploy/wevj-12-00059.pdf
32. Schmitt, M., Decker, S. and Doppelbauer, M., Measuring and Characterization of a Pedal Electric Cycle (Pedelec) on a Full System Test-Bench with Full Range Emulation of a Cyclist, EPE'19 ECCE Europe (IEEE, 2019); doi 10.23919/EPE.2019.8915567. Retrieved September 23, 2026. https://publikationen.bibliothek.kit.edu/1000100371/50695920
33. Kollmeyer, P. et al., LG 18650HG2 Li-ion Battery Data, Mendeley Data v2, McMaster University; doi 10.17632/b5mj79w5w9.2 (0.5C discharge files, recomputed). Retrieved September 23, 2026. https://doi.org/10.17632/b5mj79w5w9.2
34. Samsung SDI, Specification of Product INR18650-25R, § 7.6 Temperature dependence of discharge capacity. Retrieved September 23, 2026. https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/4628.130109_5F00_INR18650_2D00_25R-Cell-SPEC-_2800_3_2900_-_2800_1_2900_.pdf
35. Samsung SDI, Specification of Product INR18650-30Q, discharge characteristics by temperature. Retrieved September 23, 2026. https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/INR18650_2D00_30Q_5F00_datasheet.PDF
36. Samsung SDI, Technical Information INR18650-35E, discharge by temperature. Retrieved September 23, 2026. https://enerpower.de/wp/wp-content/uploads/2016/03/Technical_Information_INR18650-35E.pdf
37. Casado, C. et al., Temperature-dependent capacity of lithium-ion cells, Journal of Power Sources (2025); doi 10.1016/j.jpowsour.2025.236552. Retrieved September 23, 2026. https://doi.org/10.1016/j.jpowsour.2025.236552
38. NOAA, NASA and USAF, U.S. Standard Atmosphere, 1976 (NOAA-S/T 76-1562). Retrieved September 23, 2026. https://ntrs.nasa.gov/api/citations/19770009539/downloads/19770009539.pdf
39. Electric Revolution, Vtuvia SF20 Foldable Fat Tire E-Bike (YouTube, August 9, 2022), transcript read. Retrieved September 28, 2026. https://www.youtube.com/watch?v=jpzR-a7ogxA
40. US Army, For good measure: Natick releases raw data from Army-wide anthropometric survey (ANSUR II, 2012). Retrieved September 25, 2026. https://www.army.mil/article/188601/for_good_measure_natick_releases_raw_data_from_army_wide_anthropometric_survey
41. Peveler, W. W., Pounders, J. D. and Bishop, P. A., Effects of saddle height on anaerobic power production in cycling, Journal of Exercise Physiology Online (2005). Retrieved September 25, 2026. https://www.asep.org/asep/asep/JEPonlineFEBRUARY2005_PevelerSaddle.doc
42. Peveler, W. W. and Green, J. M., Effects of saddle height on economy and anaerobic power in well-trained cyclists, Journal of Strength and Conditioning Research (2007). Retrieved September 25, 2026. https://pubmed.ncbi.nlm.nih.gov/18076230/
43. Ferrer-Roca, V. et al., A comparison of static and dynamic methods for measuring knee angle during cycling (2012). Retrieved September 25, 2026. https://pubmed.ncbi.nlm.nih.gov/22190163/
44. Priego Quesada, J. I. et al., Effect of bike-fit in the perception of comfort, fatigue and pain (2017). Retrieved September 25, 2026. https://pubmed.ncbi.nlm.nih.gov/27490817/
45. Slane, J. et al., The influence of glove and hand position on pressure over the ulnar nerve during cycling (2011). Retrieved September 25, 2026. https://pubmed.ncbi.nlm.nih.gov/21458120/
46. Carahalios, A., Handlebar load in road cycling (University of Colorado, 2015). Retrieved September 25, 2026. https://scholar.colorado.edu/downloads/70795789x
47. Clauser, C. E., McConville, J. T. and Young, J. W., Weight, Volume, and Center of Mass of Segments of the Human Body (NASA/AMRL, 1969). Retrieved September 25, 2026. https://ntrs.nasa.gov/api/citations/19700027497/downloads/19700027497.pdf
