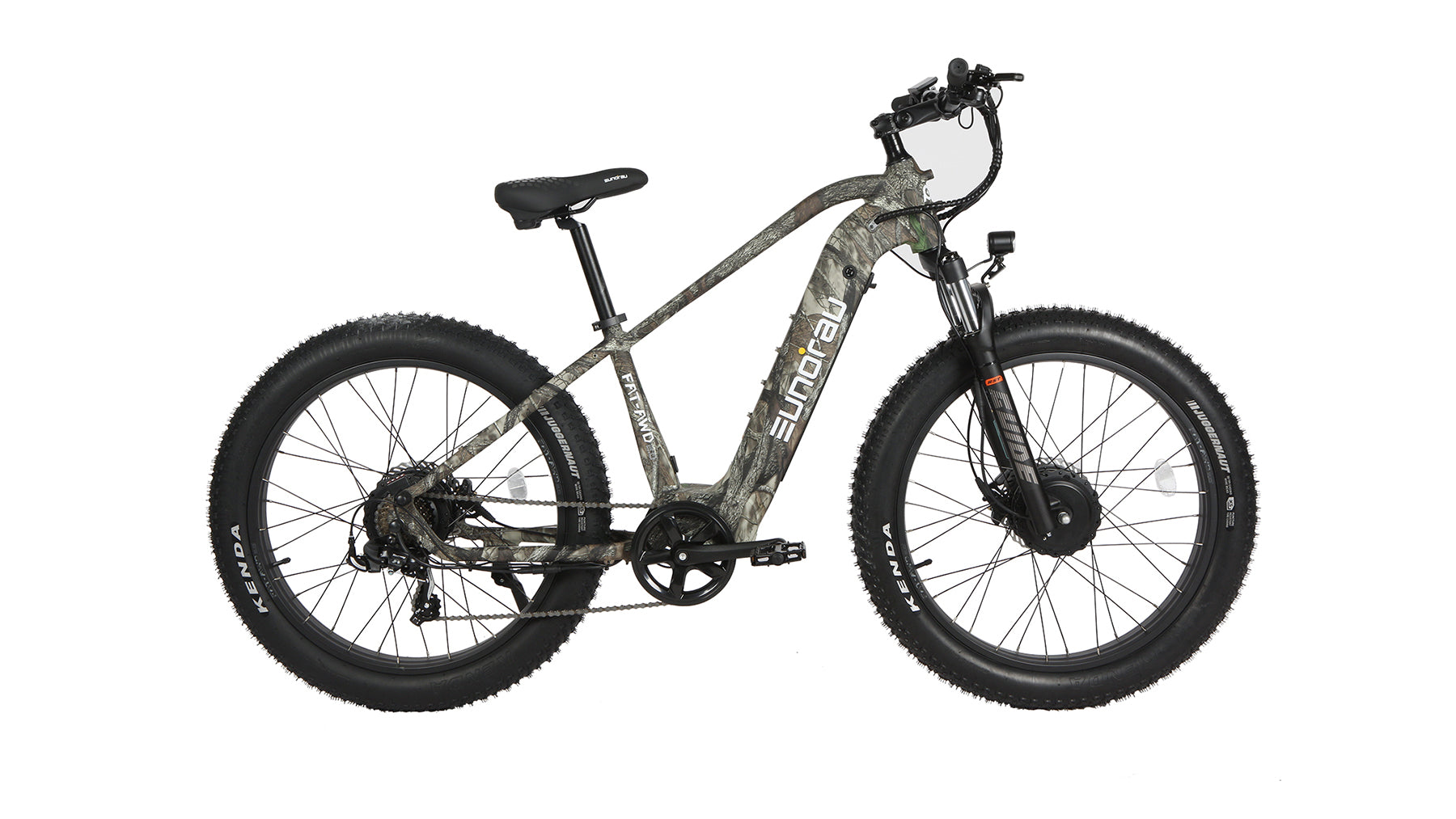

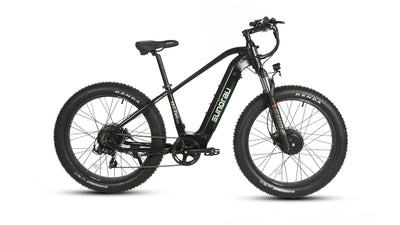

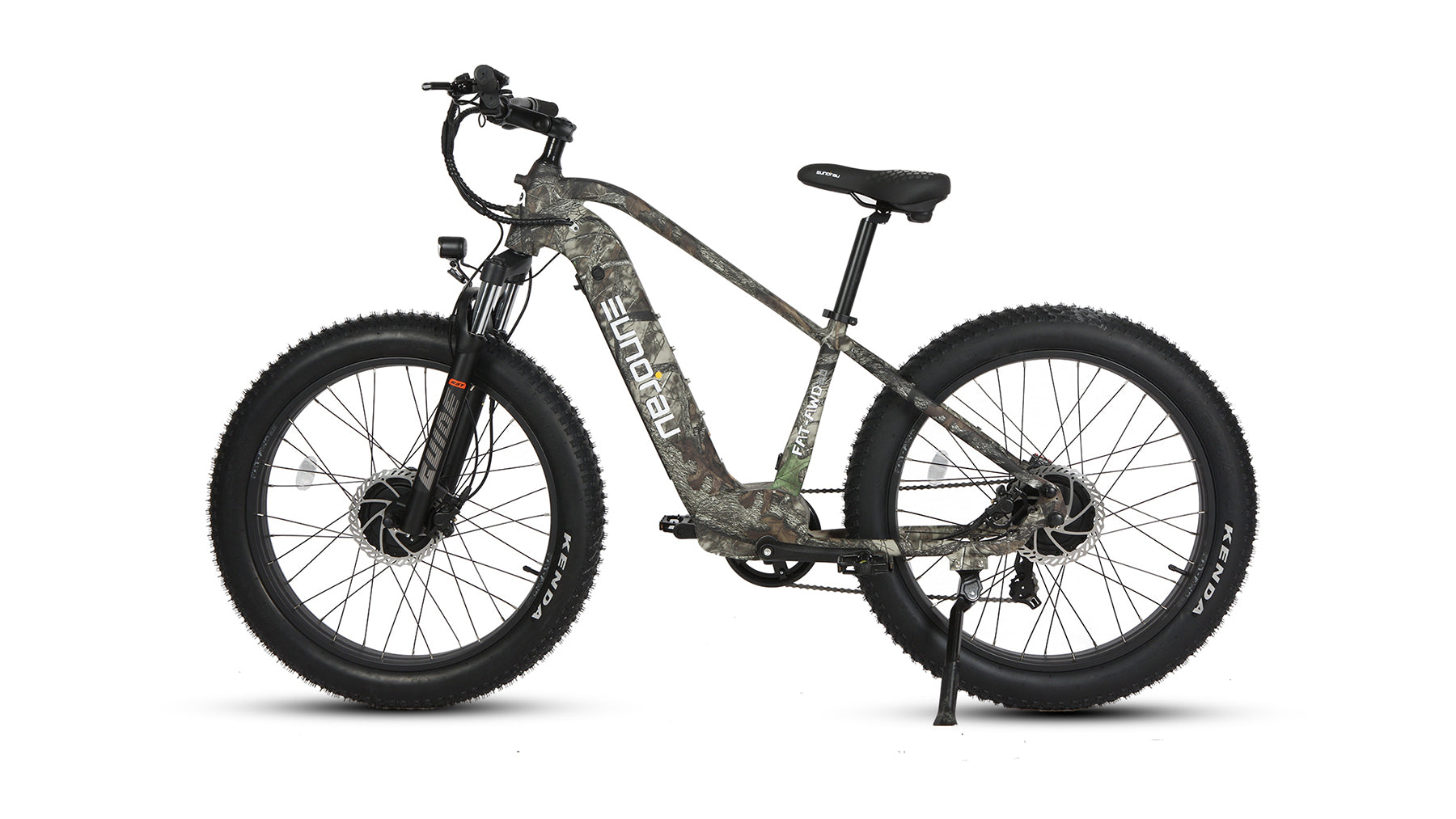

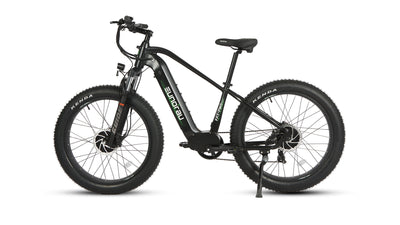

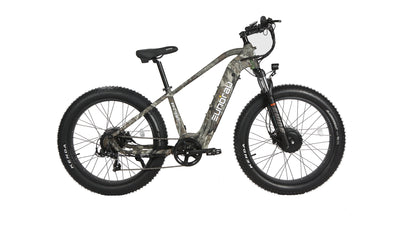

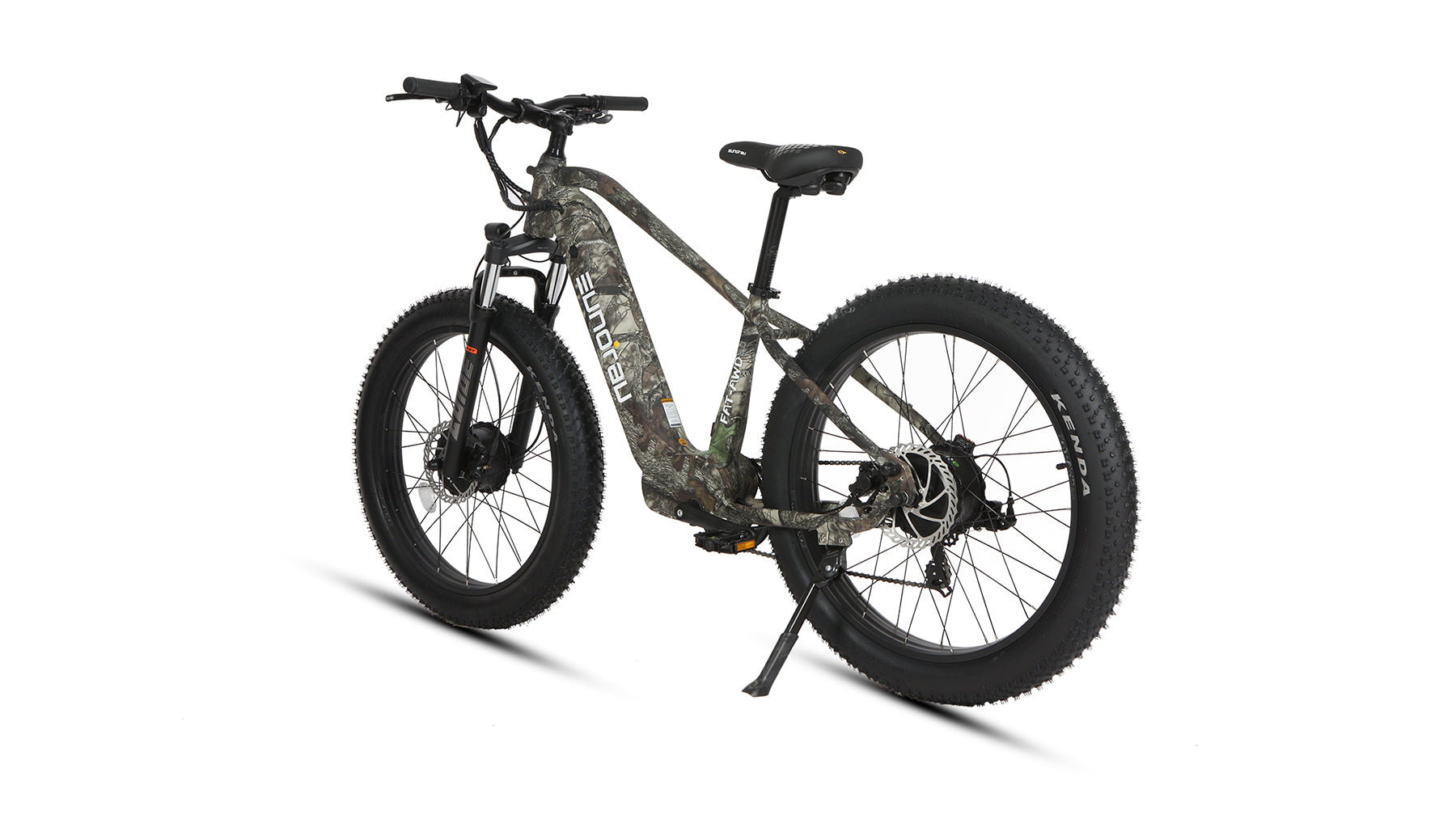

Eunorau FAT-AWD 2.0 All-Wheel-Drive Fat eBike
Every Redtail e-bike includes a free 1-month warranty plus manufacturer coverage. Add the Redtail Care Package for dedicated support from our US-based team — remote diagnostics, manufacturer claim handling & return-shipping coordination — for up to 5 years.
Your selected plan is added automatically when you tap Add to Cart. No Care Package is added by default.
A support & service plan — it does not cover physical repairs or replacement parts. See full Care Package details →

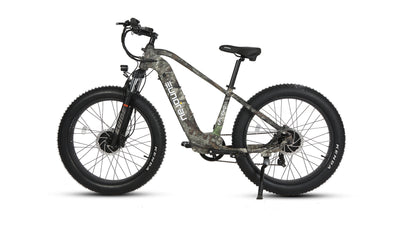

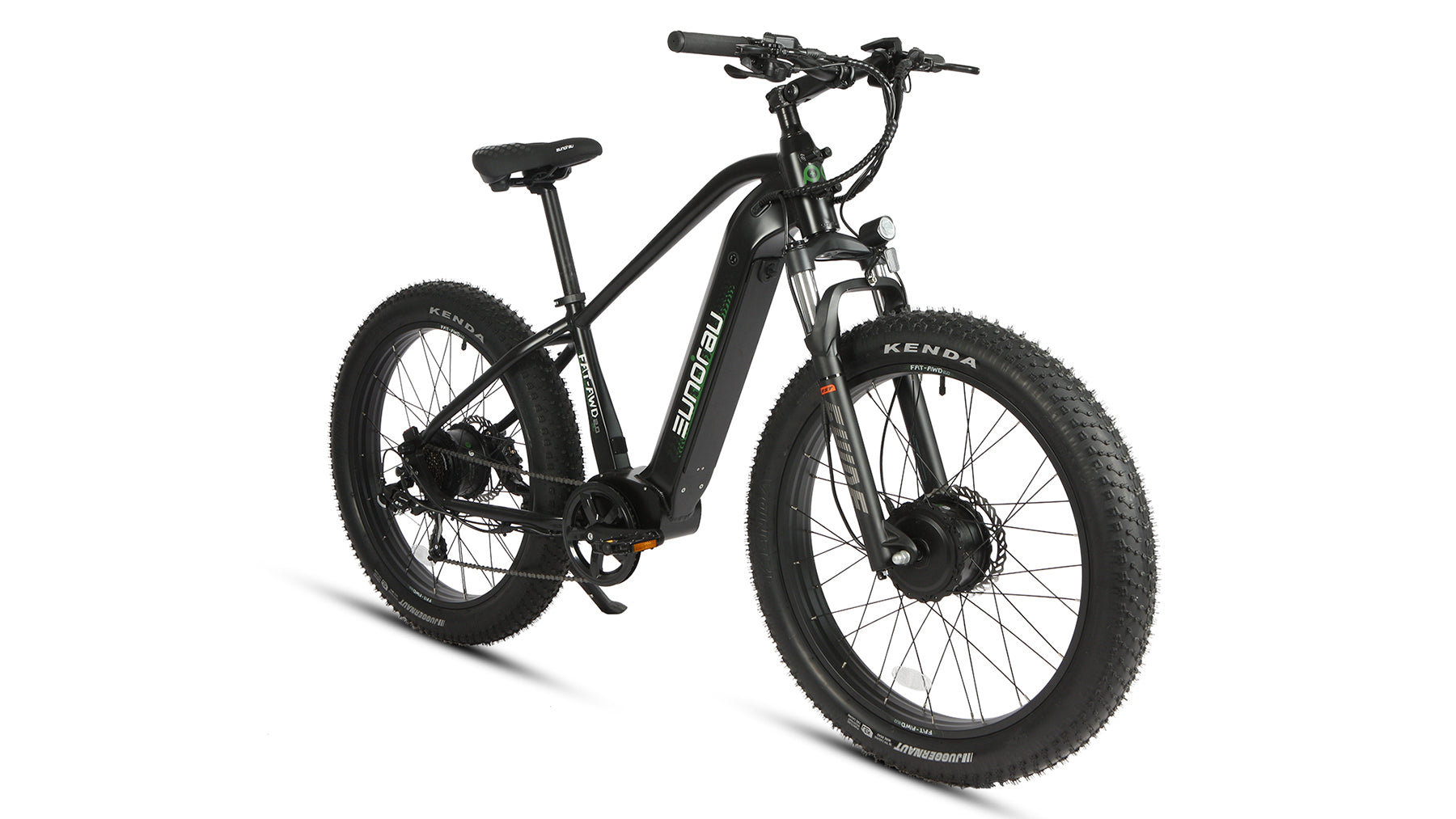

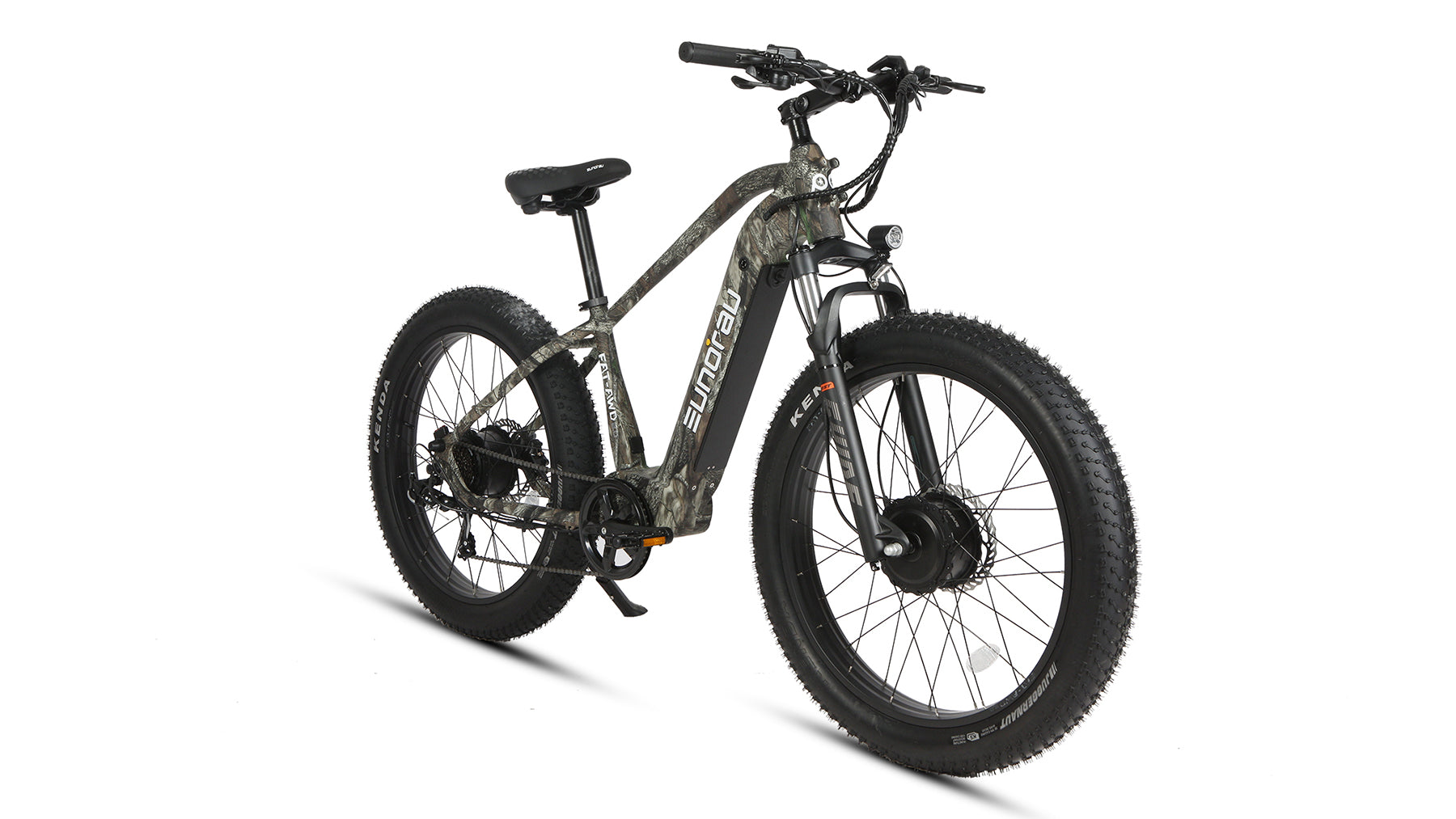

Eunorau FAT-AWD 2.0 All-Wheel-Drive Fat eBike
The Eunorau FAT-AWD 2.0 All-Wheel-Drive Fat is an all-wheel-drive fat e-bike. Eunorau rates it at a Front 48V/500W+Rear 500W Hub motor hub motor rated at 110 N.m, a 20 mph top speed, a manufacturer range of up to 80 miles (with dual batteries) and a 375 lbs payload. It's listed as Class 2, UL certified, sized for riders 5'3" ~ 6'1", and it weighs step-over 81.5 lbs, step-thru 79.4 lbs. $1,699 with free shipping in the lower 48.
- 500 W110 N.m motor
- 15 AhBattery
- 80 miMfr. range
- 20 mphMfr. top speed
- 26×4.0Tires
Class, speed & certification
E-bike class
Class 2 Speed limited Unlockable
Class rules are set by state and local law in the U.S. Check the rules where you ride — some paths and trails restrict Class 3.
Top speed
20MPH
UL certified
Yes — as published by Eunorau. UL listing for the battery and electrical system is what many U.S. cities, insurers, and apartment buildings now ask for.
Who the FAT-AWD 2.0 All-Wheel-Drive Fat is for
Buy it if
- Loose, steep, or broken ground — sand, gravel, snow, and root-covered trail
- Riders who need a UL-certified battery to charge indoors
Look elsewhere if
- Anyone who needs to lift the bike regularly — it weighs Step-over 81.5 lbs, step-thru 79.4 lbs
- Buyers who want the headline range without buying the second battery
The motor
Eunorau specifies Front 48V/500W+Rear 500W Hub motor, MAX 110 N.m.
Battery and range
Battery: 48V 15Ah (Optional Second Battery 15Ah). Eunorau rates the range at Up to 80 Miles (with dual batteries). Charging takes 5 - 7 hours. Real-world range moves with rider weight, terrain, temperature and throttle use.
Suspension
Front: RST GUIDE 95mm travel suspension.
Brakes and tires
Brakes: 180mm hydraulic disc brakes. Tires: KENDA Krusade Sport 26" × 4.0 tires.
Size, fit and capacity
Eunorau publishes a total payload capacity of 375 lbs. Recommended rider height is 5'3" ~ 6'1". The bike weighs Step-over 81.5 lbs, step-thru 79.4 lbs.
The honest ledger
Green flags
- UL certified, per Eunorau — increasingly what US cities, insurers and apartment buildings require before an e-bike can be charged indoors
- Class 2, the least-restricted category on most US bike paths — Eunorau notes the limit is unlockable
- Torque sensor rather than a cadence sensor, so assist scales with how hard you actually pedal instead of switching on a beat late
- Front suspension: RST GUIDE 95mm travel suspension
- Hydraulic disc brakes with motor cut-off in the levers
Red flags
- Step-over 81.5 lbs, step-thru 79.4 lbs is heavy — fine on the road, awkward on stairs or a car rack
- The headline range (Up to 80 Miles (with dual batteries)) assumes the optional second battery, which is bought separately — the standard pack will not reach it
- The 7-speed drivetrain (SHIMANO ASLM3157RC 7 Speed) is entry-level — adequate, not a highlight
How the FAT-AWD 2.0 All-Wheel-Drive Fat compares
All figures below are Eunorau's own published numbers. A blank cell means Eunorau does not publish that spec for that model — left empty rather than guessed.
| Spec | FAT-AWD 2.0 All-Wheel-Drive Fat | Defender Full-Suspension Fat | FAT-HD 1.0 Pro Mid-Drive Fat eBike (Hunter X7) |
|---|---|---|---|
| Price | $1,699 | $1,599 | $1,999 |
| Motor | Front 48V/500W+Rear 500W Hub motor, MAX 110 N.m | 48V1000W BAFANG brushless mid motor with 160 N.m torque | |
| Battery | 48V 15Ah (Optional Second Battery 15Ah) | 48V15Ah, Optional 15Ah/17Ah battery (Dual battery design) | 48V/25Ah |
| Range (mfr.) | Up to 80 Miles (with dual batteries) | Up to 80 miles (with dual batteries) | Up to 60 Miles |
| Top speed (mfr.) | 20MPH | 20 MPH (32 KM/H) under speed limited/locked | 20MPH |
| Front suspension | RST GUIDE 95mm travel suspension | ZOOM 100mm travel suspension fork | RST GUIDE 100mm Travel |
| Rear shock | EXA KS/A5, 165mm | ||
| Drivetrain | SHIMANO ASLM3157RC 7 Speed | SHIMANO ASLM315 7RC-7S | Shimano Derailleur 7 speed gear shift system |
| Tires | KENDA Krusade Sport 26" × 4.0 tires | CHAOYANG Tires 27.5 x 3.0 | Kenda Tires 26" x 4.0" |
| Payload | 375 lbs | 300 lbs / 136kg | 375 lbs |
| Frame | Aluminum alloy 6061 | Aluminum Alloy 6061 with Front Suspension Fork | 6061 Aluminum Alloy |
Source: each manufacturer product page on eunorau-ebike.com, pulled 2026-08-13 (source-specs_20260813.json). Blank = not published by Eunorau.
Full specifications
| Battery | 48V 15Ah (Optional Second Battery 15Ah) |
| Range | Up to 80 Miles (with dual batteries) |
| Motor | Front 48V/500W+Rear 500W Hub motor, MAX 110 N.m |
| Maximum Speed | 20MPH |
| Sensor | Torque sensor |
| Recommended Rider Heights | 5'3" ~ 6'1" |
| Display | BC182 LCD display, EUNORAU GO App Support |
| Charger | Standard 2A smart charger |
| Controller | 48V 20A |
| Battery Type | LG Lithium-ion |
| Battery Charging Time | 5 - 7 hours |
| Total Payload Capacity | 375 lbs |
| Box Dimensions | (cm) 159 L x 36 W x 89 H |
| Weight | Step-over 81.5 lbs, step-thru 79.4 lbs |
| Tires | KENDA Krusade Sport 26" × 4.0 tires |
| Rims | 26inch Black Alloy |
| Brake lever | Hydraulic disc brakes levers with motor cutoff switch |
| Shifter | SHIMANO ASLM3157RC 7 Speed |
| Brake Rotors | 180mm hydraulic disc brakes |
| Throttle | Thumb throttle (power at your hand is always available) |
| Crank | 170mm forged aluminum alloy |
| Chainring | 42T chain-wheel crank |
| Freewheel | SHIMANO derailleur 7-speed freewheel |
| Frame | Aluminum alloy 6061 |
| Fork | RST GUIDE 95mm travel suspension |
| Saddle | EUNORAU comfortable C7 saddle, height to ground 31.5”-39.0” |
| Handlebar | Adjustable Stem for Comfort - Matte Black |
| Front Light | LED light |
| Rear Light | LED Light |
| Tool | Included |
| A: Seat Tube | 432mm/17in |
| B: Reach | 385mm/15.1in |
| C: Head Tube | 160mm/6.3in |
| D: Chain Stay | 505mm/19.9in |
| E: Bracket Height | 312mm/12.3in |
| F: Wheelbase | 1163mm/45.8in |
| G: Top Tube | 608mm/23.9in |
| H: Stack | 686mm/27in |
| I: Total Length | 1905mm/45.8in |
| J: Weight | 36kg/79.41bs |
Specifications as published by Eunorau at eunorau-ebike.com/products/fat-awd-2, verified 2026-08-13. We publish the manufacturer's figures as given and do not add specs Eunorau does not state. Found an error? Email support@redtailebikes.com.
Warranty
| Component | Coverage |
|---|---|
| Frame | 10 years |
| Battery | 24 months |
| Motor | 24 months |
| Electrical components | 24 months |
What it covers
Manufacturing defects in Eunorau's original parts and components.
Eunorau states it continues to support the product after the warranty period as a manufacturer courtesy, and may ask only for shipping costs on replacement parts.
What you must do
- You are the original purchaser — the warranty does not transfer
- Proof of purchase (your Redtail order confirmation)
- Product registration with Eunorau right after purchase
- An e-bike check-up by a Eunorau specialist or dealer after the first year of use
Not covered
- Ordinary wear and tear — brake pads, rotors, spokes, grips, shifters, brake cables and casings, tires and tubes, chains, chainrings, cassettes, transmission gears
- Labor charges for part replacement
- Corrosion from moisture or heat, and cosmetic deterioration of the finish
- Damage from accident, abuse, stunt riding, racing, improper storage, or neglect
24-Month+ Limited Warranty issued by Eunorau Bikes, a Nevada corporation. Bikes bought for commercial use — rental fleets, delivery, sharing programs — get a 50% reduced warranty period. Full terms are published by Eunorau at eunorau-ebike.com/pages/warranty. Redtail coordinates warranty claims for bikes bought from us, so send it to us rather than to Eunorau: support@redtailebikes.com.
Manuals & documentation
In the box
Eunorau's spec sheet for this model lists a printed manual and a tool kit as included.
Any other document
Eunorau publishes display, controller, shock and accessory manuals across several files. Tell us which one you need and we will send you our copy, so you are not hunting through a supplier download hub.
Eunorau publishes display and component manuals rather than a per-bike user manual. We link only the manual Eunorau lists against this exact model. Need a document we haven't linked? Email support@redtailebikes.com and we'll request it from Eunorau.
Shipping, returns & support
Shipping
Free shipping on every electric bike within the contiguous United States (lower 48).
Orders are prepared and dispatched within 1–3 business days. Most e-bikes arrive within 5–10 business days after dispatch.
Ships via UPS, FedEx, or LTL freight for larger items, with tracking emailed at dispatch. Freight deliveries may need a scheduled appointment and a signature.
On delivery
Inspect your shipment at delivery. Damage, defects, or incorrect items must be reported with photos within 48 hours.
If a bike arrives dead, won't charge, throws an error code, or has a faulty component, it is covered under the manufacturer warranty and Redtail coordinates repair or replacement remotely.
Returns
Change-of-mind returns accepted only on unopened, factory-sealed items requested within 72 hours of delivery, with a 15% restocking fee plus return shipping. Once a box is opened or a bike is ridden, it is no longer eligible.
Order cancellations carry a 3% transaction fee, because card-processing fees are non-recoverable.
Alaska, Hawaii, U.S. territories, P.O. boxes, and remote areas may incur extra charges or be excluded — contact us before ordering. Full terms: Shipping Policy · Refund & Return Policy.
Frequently asked questions
How far does the Eunorau FAT-AWD 2.0 All-Wheel-Drive Fat go on one charge?
Eunorau rates the FAT-AWD 2.0 All-Wheel-Drive Fat at Up to 80 Miles (with dual batteries). That figure assumes the optional second battery, bought separately. Charging takes 5 - 7 hours. Manufacturer range figures are measured under favorable conditions — expect less with hills, heavy loads, cold weather or heavy throttle use.
How fast is the Eunorau FAT-AWD 2.0 All-Wheel-Drive Fat?
Eunorau publishes 20MPH. It is listed as Class 2. E-bike class rules and speed limits are set by state and local law in the U.S., so check the rules where you ride before you buy.
Who does the FAT-AWD 2.0 All-Wheel-Drive Fat fit, and how much can it carry?
Eunorau publishes a total payload capacity of 375 lbs. Recommended rider height is 5'3" ~ 6'1". The bike itself weighs Step-over 81.5 lbs, step-thru 79.4 lbs.
Is the Eunorau FAT-AWD 2.0 All-Wheel-Drive Fat UL certified?
Yes — Eunorau lists this model as UL certified. In the U.S. that increasingly determines whether you can store and charge the bike inside an apartment building, and some insurers ask for it too.
What warranty covers the Eunorau FAT-AWD 2.0 All-Wheel-Drive Fat?
Eunorau's 24-Month+ Limited Warranty: 10 years on the frame and 24 months on the battery, motor and electrical components, covering manufacturing defects. It requires registration with Eunorau after purchase, applies to the original purchaser only, and excludes wear items and labor. Redtail coordinates claims for bikes bought from us.
How does the FAT-AWD 2.0 All-Wheel-Drive Fat ship, and can I return it?
Free shipping within the contiguous U.S., dispatched in 1–3 business days and typically delivered 5–10 business days later. Inspect it at delivery — damage or defects must be reported with photos within 48 hours. Unopened change-of-mind returns are accepted within 72 hours with a 15% restocking fee plus return shipping.
Keep looking
All Eunorau e-bikes we stock · Compare the Defender Full-Suspension Fat eBike · Compare the FAT-HD 1.0 Pro Mid-Drive Fat eBike (Hunter X7) · Every e-bike brand at Redtail · Shop electric bikes by type
How we verified this page. Every specification above was read from Eunorau's own published product page on 2026-08-13 and is reproduced as Eunorau states it. Where Eunorau does not publish a figure, this page leaves it out rather than estimating. Warranty terms are Eunorau's, quoted from their warranty policy; shipping and return terms are Redtail's own. Prices are USD and current at the date shown. Corrections: support@redtailebikes.com.
